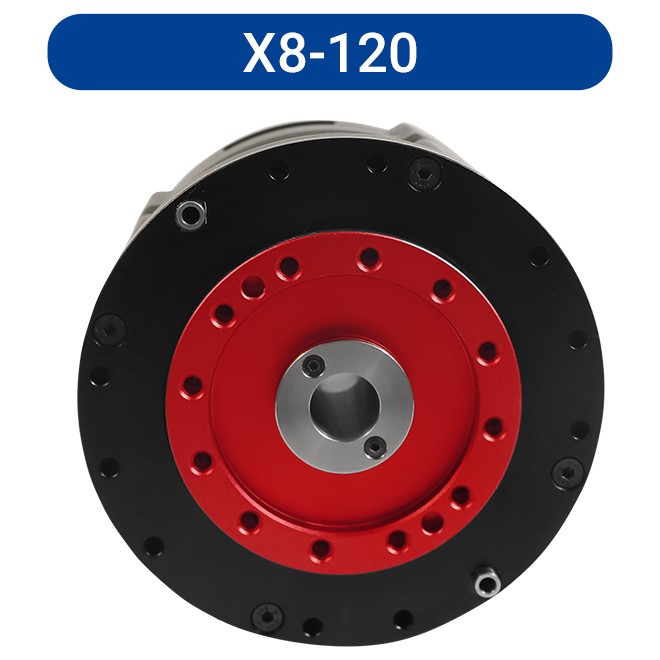

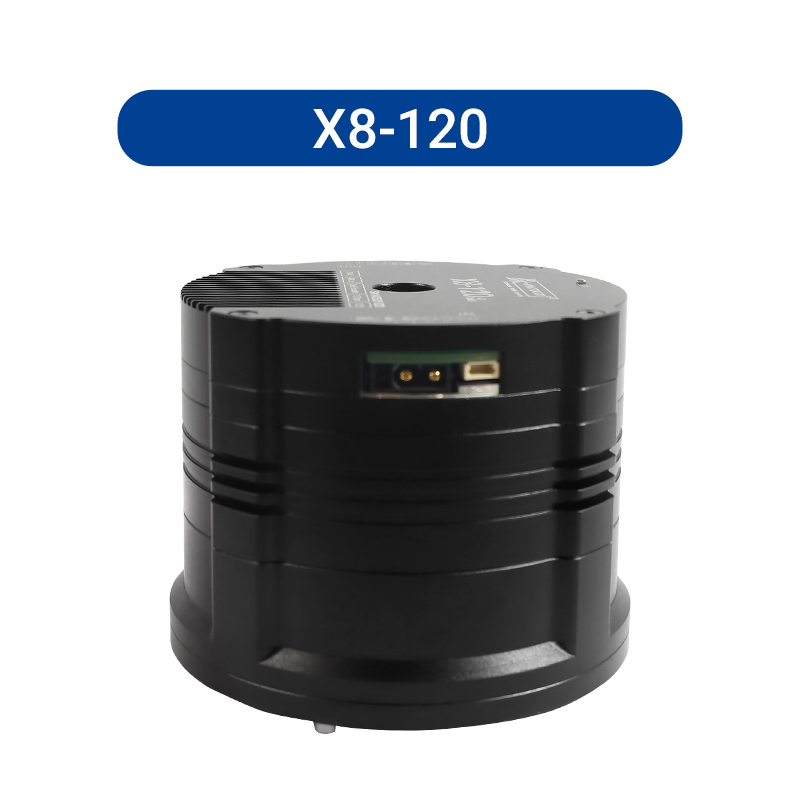

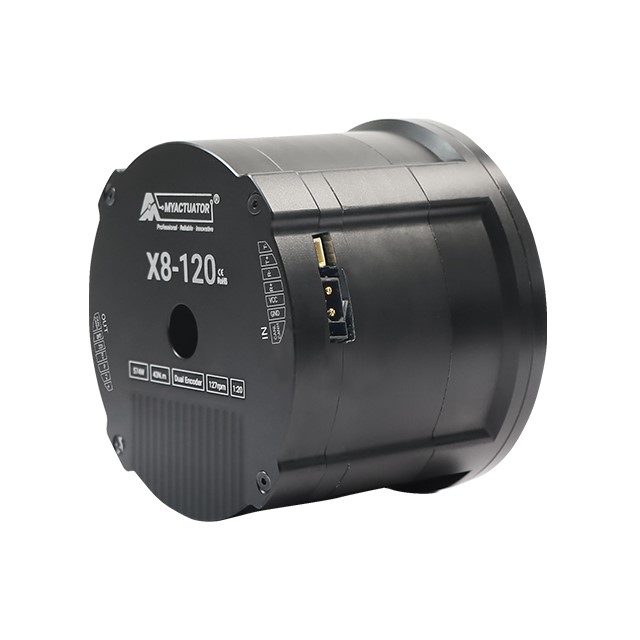

MyActuator Brushless DC Motor RMD-X8-120 EtherCAT Large Hollow Planetary Reduction Torque

$645.00

EtherCAT Large Torque 120n.M Robot Joint Module Large Hollow Planetary Reduction Torque

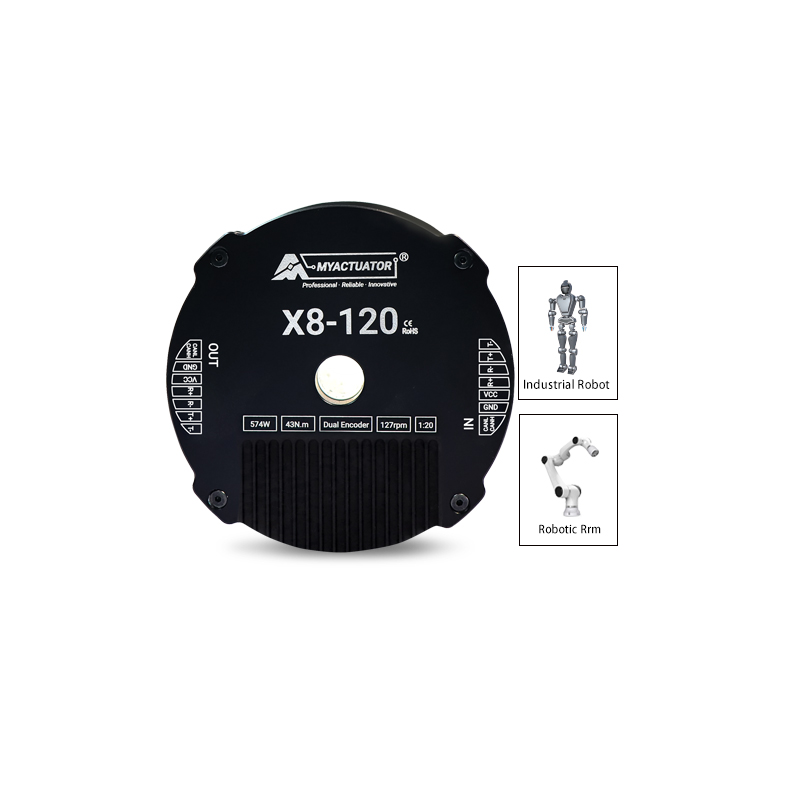

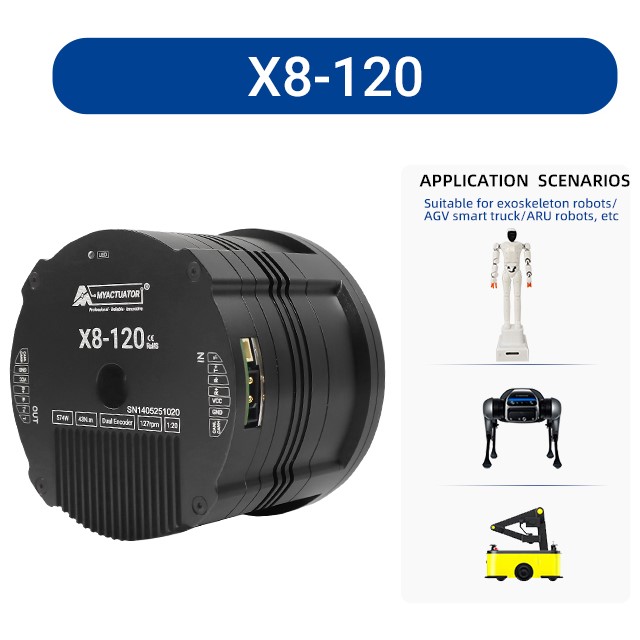

RMD-X8-P20-120-E is an EtherCAT+CAN dual protocol. The large hollow structure is compatible with multi-sensor integration and provides a data center for whole-body attitude control. Crossed roller bearings have disruptive bending moment resistance capabilities. Large hollow integrated design releases the potential of mechanical structure. It is ideal for humanoid robot joint drives and is designed for high-dynamic, high-precision, and high-reliability scenarios.

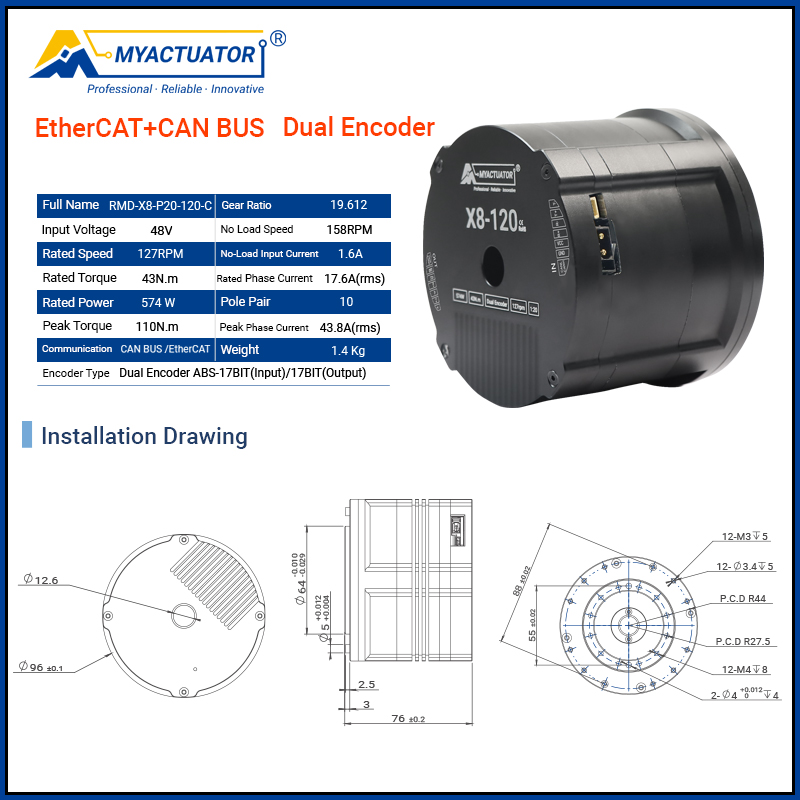

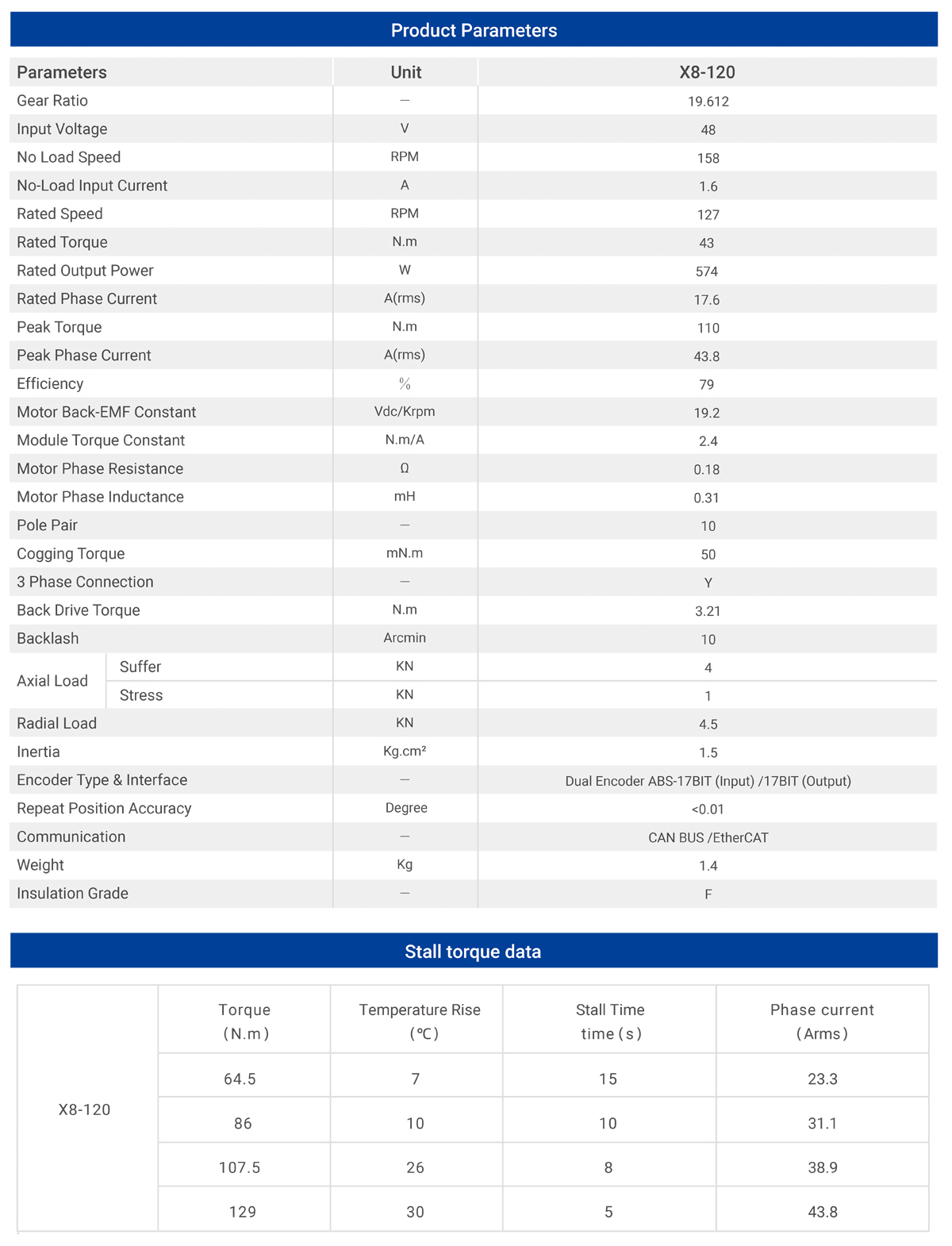

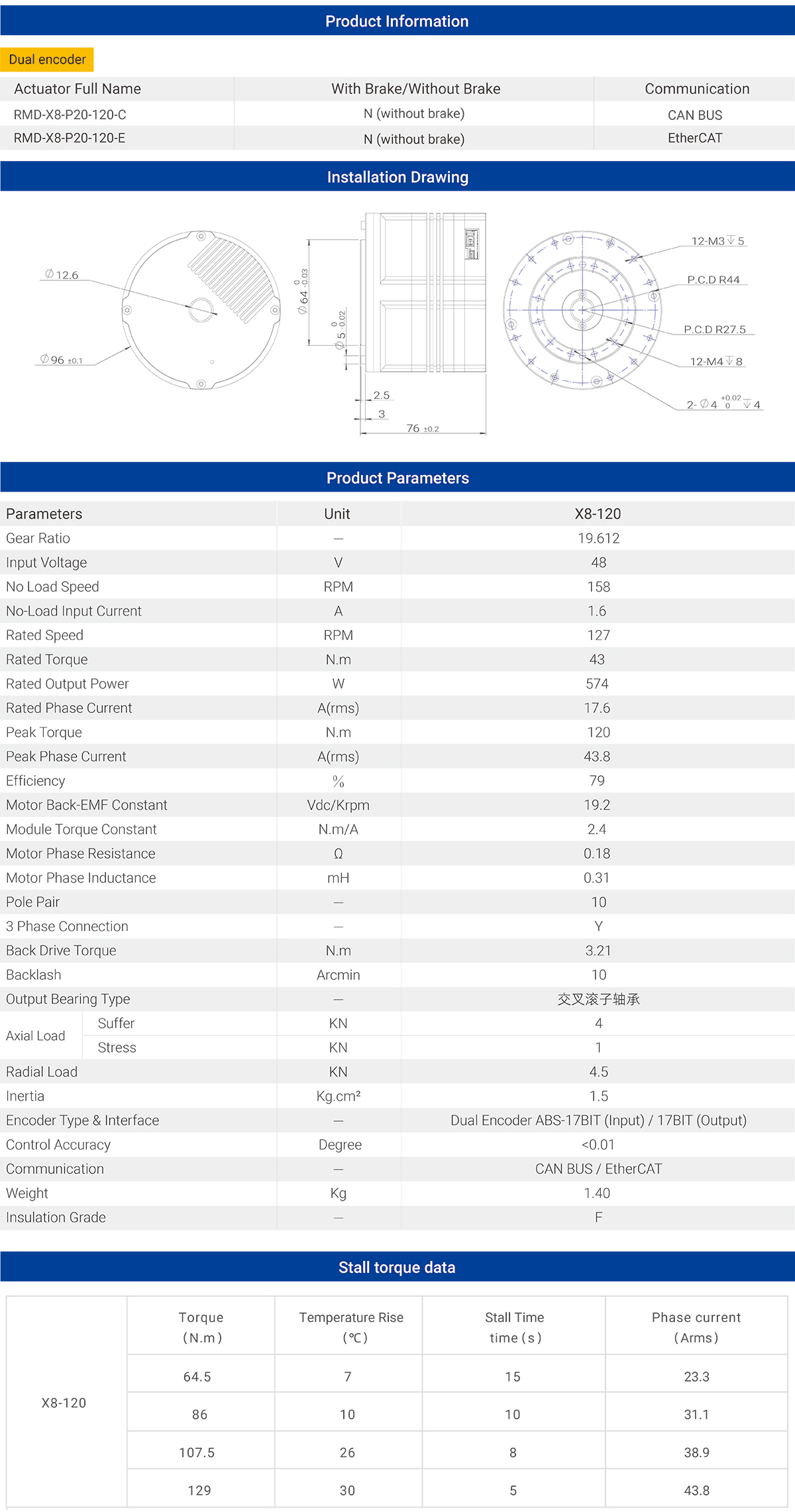

  • Gear Ratio:19.612
  • Input Voltage: 48v
  • No Load Speed: 158RPM
  • No-Load input Current: 1.6A
  • Rated Speed: 127RPM
  • Rated Torque: 43N.M
  • Rated Output Power: 574W

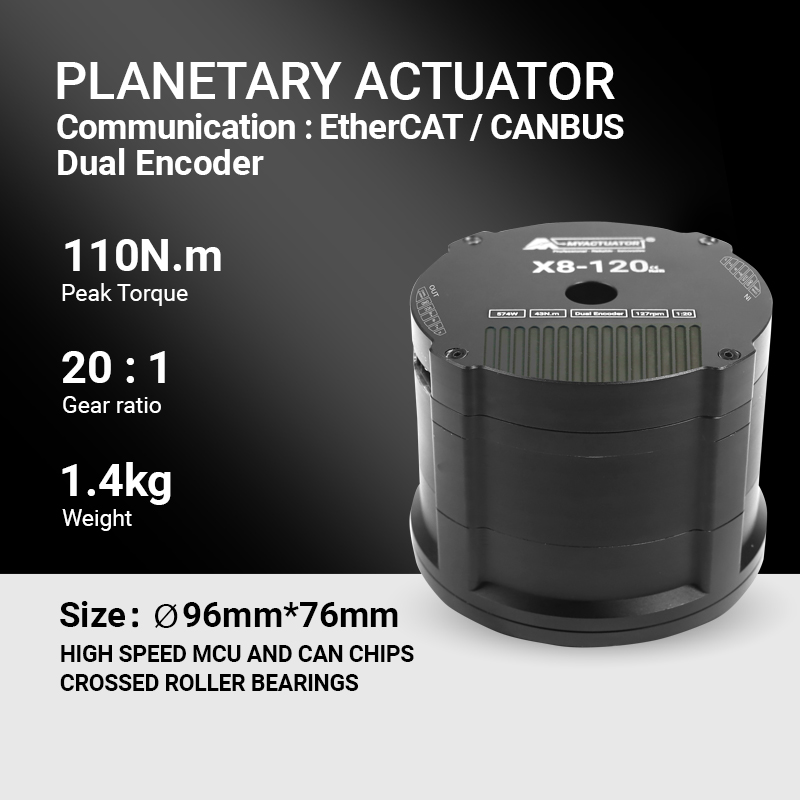

  • Peak Torque: 110N.M


Ships From: China

Supplier: MyActuator SKU: RMD-X8-P20-120-E Categories: , , , , Tags: , , , ,

The large hollow structure is compatible with multi-sensor integration and provides a data center for whole-body attitude control. Crossed roller bearings have disruptive bending moment resistance capabilities.
