Nordic nRF7002+nRF5340 WiFi + Bluetooth LE Starter Kit AN7002Q-DB-5340
Nordic nRF7002+nRF5340 WiFi + Bluetooth LE Starter Kit AN7002Q-DB-5340 - Image 2
Nordic nRF7002+nRF5340 WiFi + Bluetooth LE Starter Kit AN7002Q-DB-5340 - Image 3

Nordic nRF7002+nRF5340 WiFi + Bluetooth LE Starter Kit AN7002Q-DB-5340

$21.99

Model No: AN7002Q-DB-5340

  • Module Demo Board/Kit built by MDBT53-P1M + AN7002Q-P
  • Nordic nRF70002+nRF5340 SoC Solution
  • WiFi specification: WiFi 6
  • Dual Band 2.4 GHz and 5 GHz
  • Complies with 802.11a/b/g/n/ac/ax
  • Supports Target Wake Time (TWT)
  • Supports WiFi 6 Station (STA)
  • 20 MHz channel bandwidth
  • 64 QAM (MCS7), 86 Mbps PHY throughput
  • Dual-core Arm® Cortex® M33
  • 1MB/256KB Flash Memory; 512kB/ 64kB RAM
  • Bluetooth specification v5.4
  • Supports Bluetooth low-energy audio
  • Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
  • RoHS & Reach Compliant.
  • PCB Antenna
  • Interfaces: SPI, SPI, UART, I2C, I2S, PWM, ADC, NFC, and USB
  • Highly flexible multiprotocol SoC, ideally suited for Bluetooth Low Energy, ANT+, Zigbee, and Thread (802.15.4) ultra-low-power wireless applications.
  • A recommended 3rd-party module by Nordic Semiconductor.


Ships From: Taiwan
Supplier: Raytac Corporation SKU: AN7002Q-DB-5340 Categories: , , , , Tags: , , , , , , , , , More From:

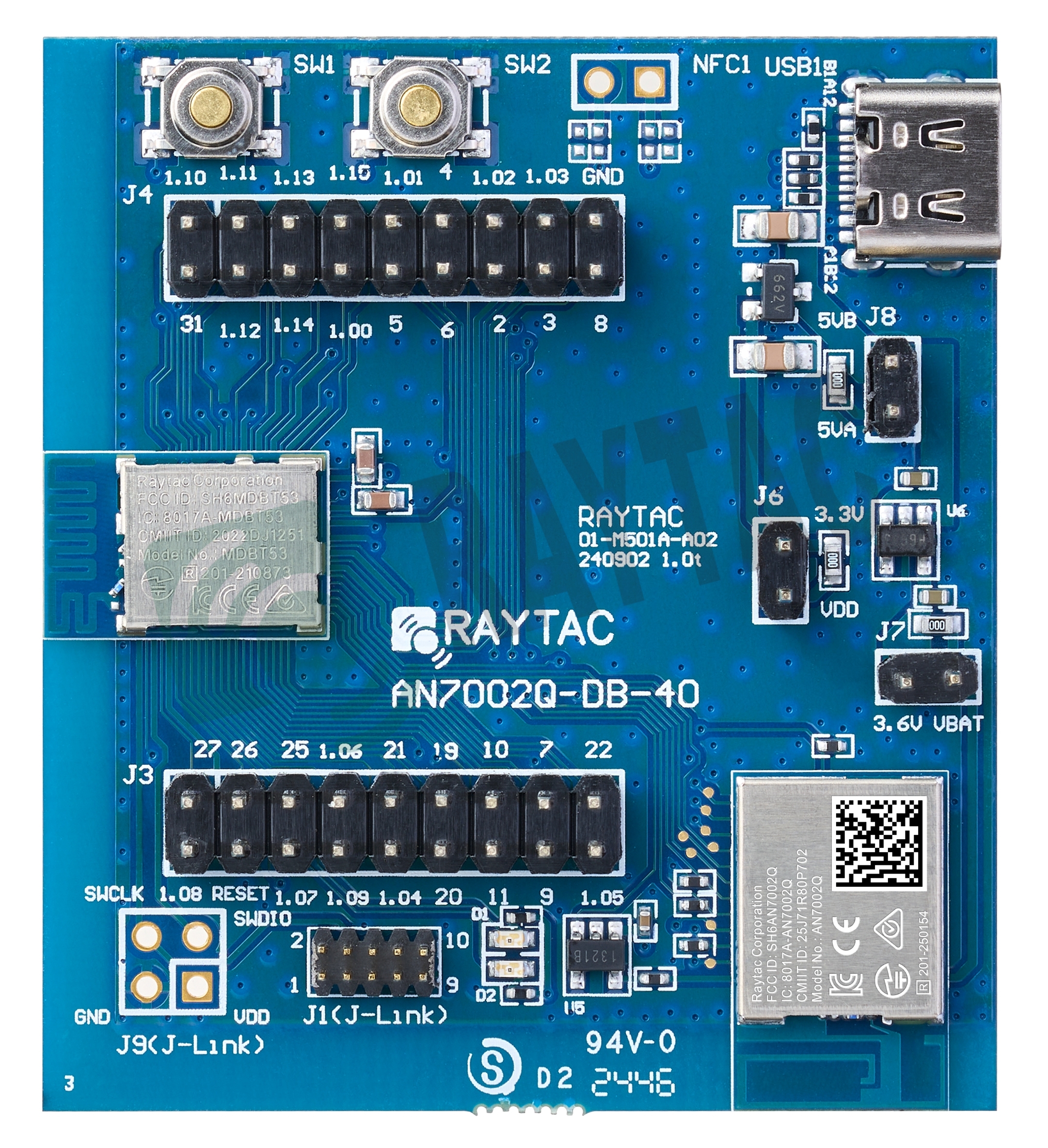

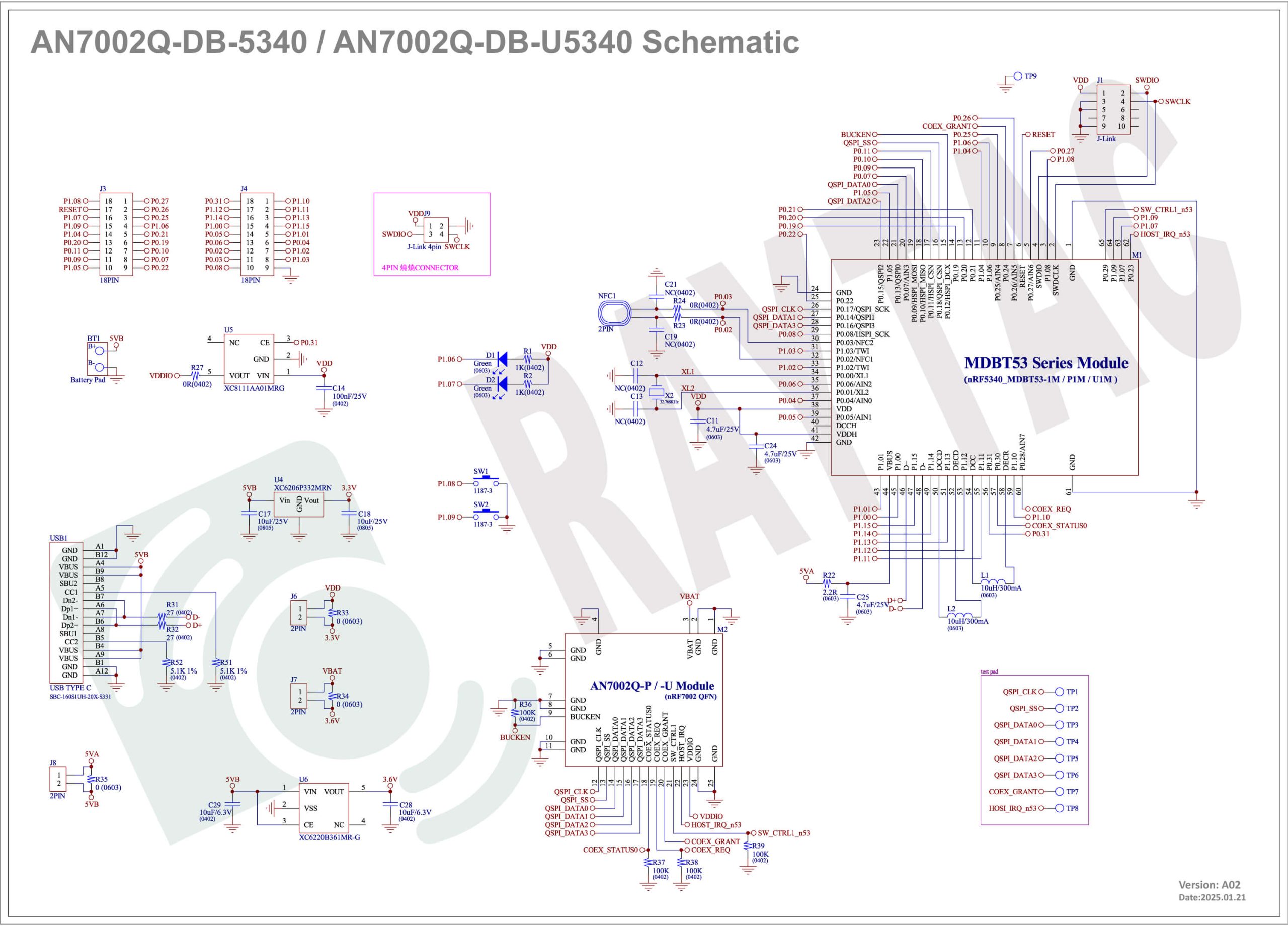

Nordic nRF7002+nRF5340 Wi-Fi + BLE Development Kit AN7002Q-DB-5340

Raytac’s AN7002Q-DB-5340 combines the spectrum coverage of both the nRF7002 & nRF5340 modules, featuring the WiFi Module AN7002Q, AN7002Q-P, and AN7002Q-U, as well as the Bluetooth Module MDBT53-1M, MDBT53-P1M, and MDBT53-U1M series, with options for Chip Antenna, PCB Antenna, and u—FL connector for the External Antenna option for selection.
The AN7002Q-DB-5340 is used for quick debug and firmware development based on WiFi + Bluetooth Low Energy applications.

WiFiFi-

  • Wi-Fi® 6 companion IC with integrated RF.
  • Supports IEEE 802.11 ax and earlier standards (IEEE 802.11 a/b/g/n/ac)
  • Supports Target Wake Time (TWT), Orthogonal Frequency Division Multiple Access (OFDMA), Basic Service Set (BSS) Coloring
  • Supports Wi-Fi CERTIFIED 6™, Wi-Fi CERTIFIED™, Wi-Fi Enhanced Open™
  • Supports WPA3™, WPA2™, WPA™ – Personal and Enterprise, Protected Management Frames
  • Supports WMM®, WMM – Power Save, WiFi Agile Multiband™, WiFi Direct®
  • Dual-band 2.4 GHz and 5 GHz operation in 1×1 (SISO) operation.
  • 3-wire or 4-wire coexistence interface and compatible with the Raytac MDBT53 series module.

Bluetooth

Network Core

  • ARM® Cortex®-M33 with TrustZone® technology
  • 64 MHz operation
  • 256 kB flash
  • 64 kB low leakage RAM
  • Bluetooth® 5.4, IEEE 802.15.4-2006, 2.4 GHz transceiver
    -98 dBm sensitivity in 1 Mbps Bluetooth Low Energy mode
    -104 dBm sensitivity in 125 kbps Bluetooth Low Energy mode (long range)
    -101 dBm sensitivity in IEEE 802.15.4
    -20 to +3 dBm configurable TX power
  • On-air compatible with nRF52, nRF51, nRF24L, and nRF24AP Series
  • Supported data rates:
    -Bluetooth 5.4 – 2 Mbps, 1 Mbps, 500 kbps, and 125 kbps
    -IEEE 802.15.4-2006 – 250 kbps
    -Proprietary 2.4 GHz – 2 Mbps, 1 Mbps
  • Angle of Arrival (AoA) and Angle of Departure (AoD) direction finding
  • 128-bit AES/ECB/CCM/AAR co-processor (on-the-fly packet encryption)
  • SPI master/slave with EasyDMA
  • I2C compatible two-wire master/slave with EasyDMA
  • UART (CTS/RTS) with EasyDMA
  • Up to 3x 32-bit timer with counter mode
  • Up to 2x real-time counter (RTC)

Application Core

  • ARM® Cortex®-M33 with TrustZone® technology
  • 128 MHz or 64 MHz operation
  • Single-precision floating-point unit (FPU)
  • Digital signal processing (DSP) instructions
  • 1 MB flash and 512 kB low leakage RAM
  • ARM TrustZone CryptoCell™-312 security subsystem
  • USB 2.0 full speed (12Mbps) controller
  • QSPI peripheral for communicating with an external flash memory device
  • Near field communication (NFC-A) tag with wake-on field
  • Up to 5x SPI master/slave with EasyDMA
  • Up to 4x I2C-compatible two-wire master/slave with EasyDMA
  • Up to 4x UART (CTS/RTS) with EasyDMA
  • Audio peripherals: I2S, digital microphone interface (PDM)
  • Up to 4x pulse width modulator (PWM) units with EasyDMA
  • 12-bit, 200 ksps ADC with EasyDMA – eight configurable channels with programmable gain
  • Up to 3x 32-bit timer with counter mode
  • Up to 2x 24-bit real-time counter (RTC)
  • Up to 2x Quadrature decoder (QDEC)
