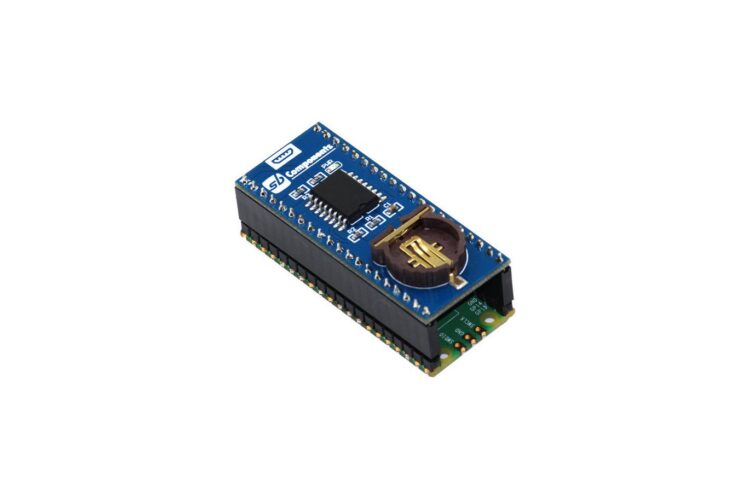

Raspberry Pi Pico Real-Time Clock Module RTC HAT

$31.99

Raspberry Pi Pico RTC HAT is a Real-Time clock expansion module with the powerful IC DS3231.


Made In: United Kingdom (UK)

Supplier: SB Components SKU: SKU21420 Categories: , , , Tags: , , , , ,

Raspberry Pi Pico Real-Time Clock Module RTC HAT

Pico RTC HAT is a Real-Time clock expansion module with the powerful IC DS3231, a backup battery holder, an operating voltage of 3.3 V, and a Fast (400kHz) I2C Interface that measures the time, which aligns the time of the device with the “Real-Time.” It is developed with the standard Raspberry Pi Pico header that supports the Raspberry Pi Pico series to enhance its efficiency at a low cost.

Features:

  • Accuracy ±2ppm from 0°C to +40°C
  • Accuracy ±3.5ppm from -40°C to +85°C
  • Battery Backup Input for Continuous Timekeeping
  • Operating Temperature Ranges Commercial: 0°C to +70°C Industrial: -40°C to +85°C
  • Low-Power Consumption
  • Two Time-of-Day Alarms
  • Programmable Square-Wave Output
  • Digital Temp Sensor Output: ±3°C Accuracy
  • Real-Time Clock Counts Seconds, Minutes, Hours, Days, Dates, Months, and Years with Leap Year Compensation Valid Up to 2100

Specifications:

  • Operating Voltage: 3.3V
  • Inbuilt IC: DS3231
  • Battery: CR1220 coin cell
  • I2C Interface: 400KHz
  • Backup Battery Voltage: 2.3V-5.5V

Kit Content:

  • 1 x Raspberry Pi Pico RTC HAT

Note: Raspberry pi pico and other items are not included; they are only for reference!
