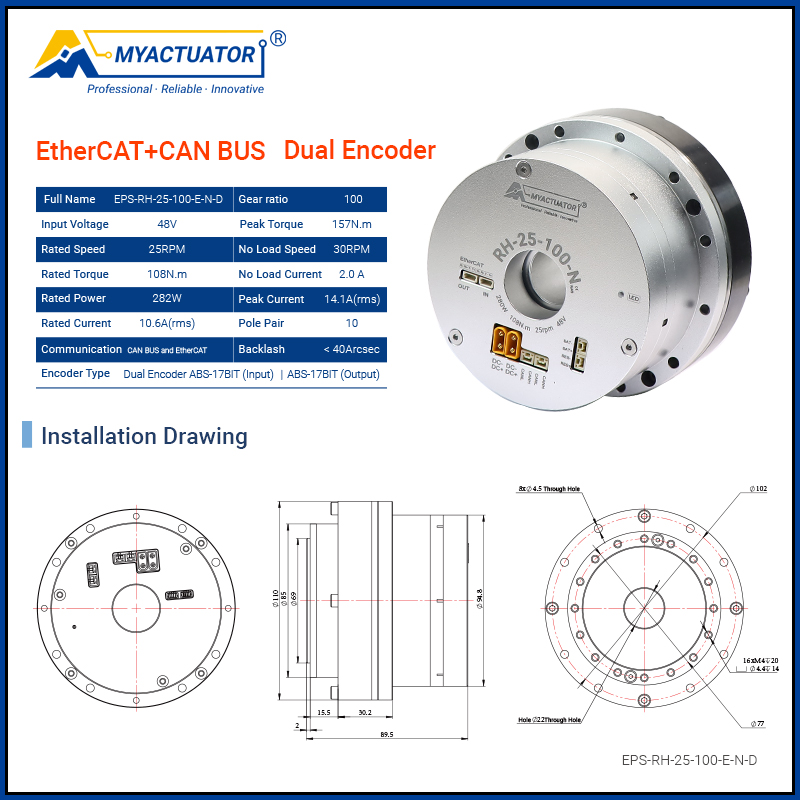

RH-25EtherCAT+CAN BUS with Brake Harmonic Robot Joint Motor and High Torque Harmonic Reducer

$1,375.00

RH-25EtherCAT+CAN BUS  with brake Harmonic joint motor Robot joint motor Large hollow design High precision high torque harmonic reducer

Extremely fast response dual-protocol intelligent communication system. Equipped with EtherCAT gigabit bus + CAN dual communication protocol, the command transmission rate reaches 100Mbps, and the synchronization cycle is shortened to 250μs, allowing the multi-axis linkage accuracy to break through the millisecond limit

  • Diversified scene applications
  • Collaborative robot joint module
  • Precision assembly line direct drive unit
  • High-precision transmission of medical equipment
  • Semiconductor wafer transmission system
