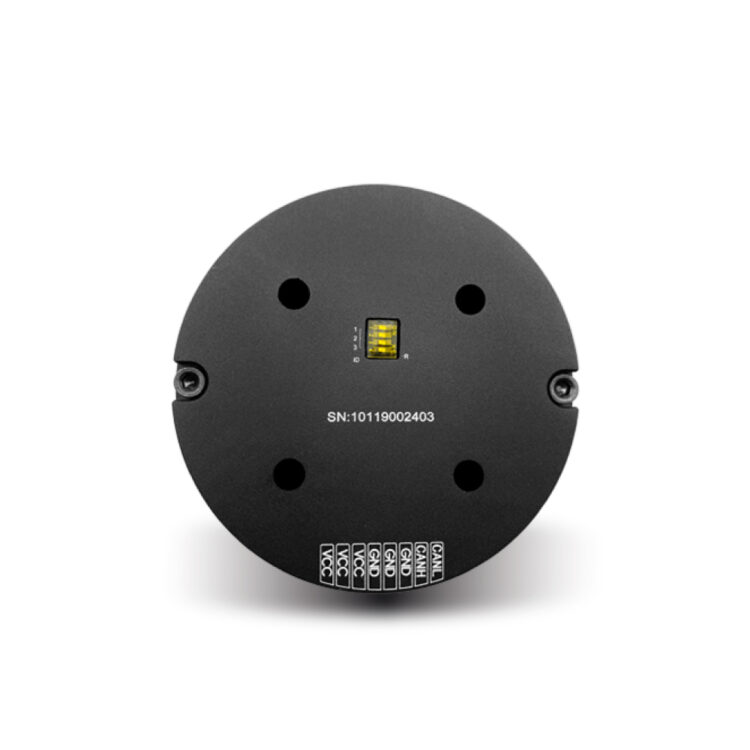

RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 4
RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 5
RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 6
  1. RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS
  2. RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 2
  3. RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 3
  4. RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 4
  5. RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 5
  6. RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS - Image 6

RMD-L-7025-28T BLDC Motor Integrated with Motor Controller And Position Sensor CAN BUS

Original price was: $125.00.Current price is: $109.00.

  • 1N.M100W low-speed high torque precision BLDC robot gimbal encoder pancake servo motor customize OEM
  • High Precision Absolute Value Encoder
  • High-Performance RbFeB Permanent Magnet
  • High-strength Lightweight Aluminum
  • High-Performance Import BearingUse

Out of stock


Ships From: China
Supplier: MyActuator SKU: RMD-L-7025-28T Categories: , , , , Tags: , , , , , , ,


Technical Specficications

  • Product model: RMD-L-7025-28T
  • Turns(T): 28
  • Nominal voltage(V): 24
  • Max Seed(rpm): 805
  • Nominal Seed(rpm): 580
  • Nominal current(A): 3.62
  • Nominal torque(N.M): 1.0
  • Resistance: 1.14
  • Wire connect: Y
  • Phase to phase inductance(MH): 1.25
  • Speed constant(rpm/v): 34
  • Torque constant(N.M/A): 0.28
  • Rotor inertia(gcm^2): 933
  • Number of pole pairs:14
  • Motor weight(G): 360
  • Working temperature(°C): -20~80°C
  • Max demagnetize temperature(°C): 120°C
  • Drive(V): DRC10
  • Input voltage(V): 8~36
  • Current(A): Normal:8A Instant:15A
  • Nominal power(W): 200
  • Communication: CAN BUS
  • Encoder: 14-bit magnetic encoder
  • Baud rate (bps): 1M
  • Communication frequency(HZ): 2K
  • Control frequency: Torque loop:24KHZ Speed loop:8KHZ Position loop:4KHZ
  • Control mode: Torque loop(current loop)/speed loop/position loop
  • S-Curve: YES
  • Connector: ZH1.5/8PIN
  • Temperature sensor: YES
