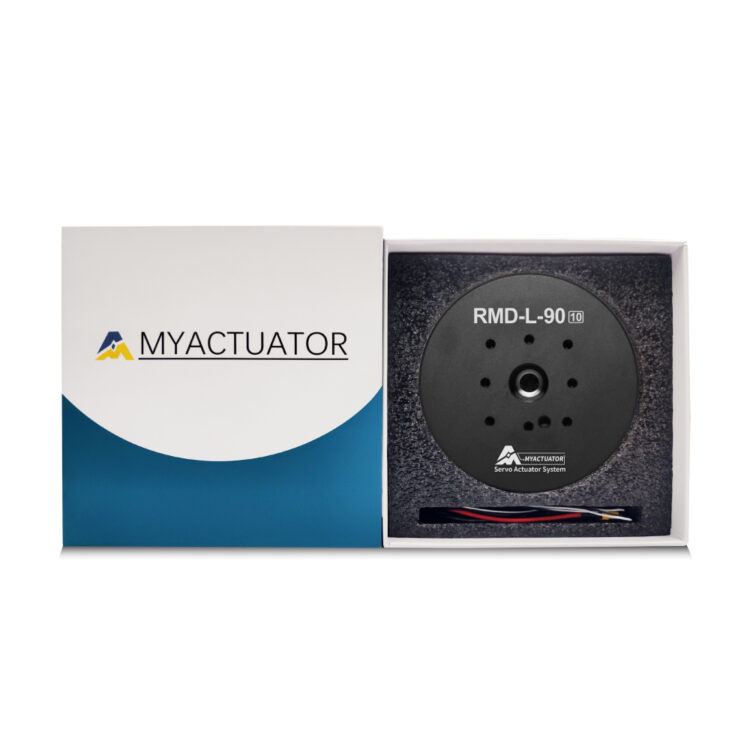

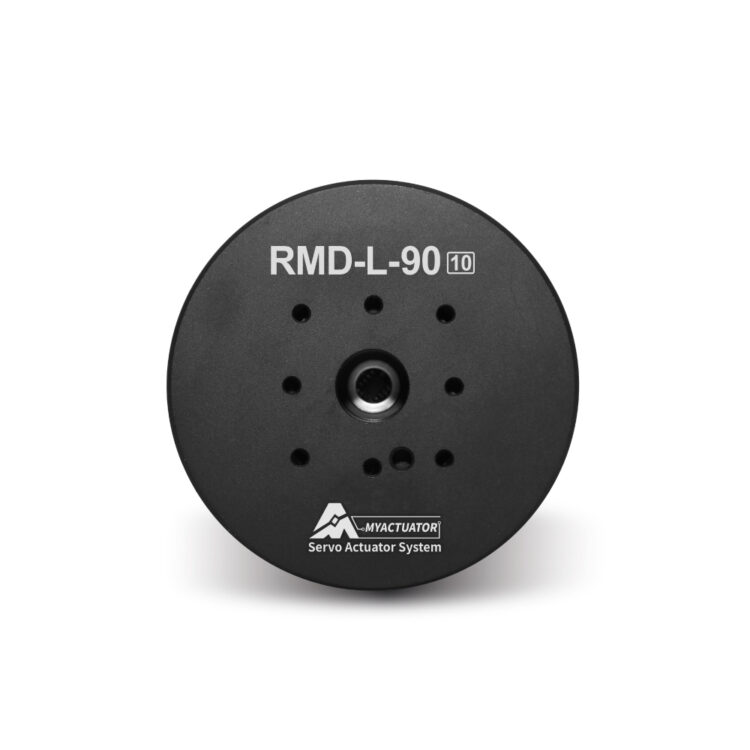

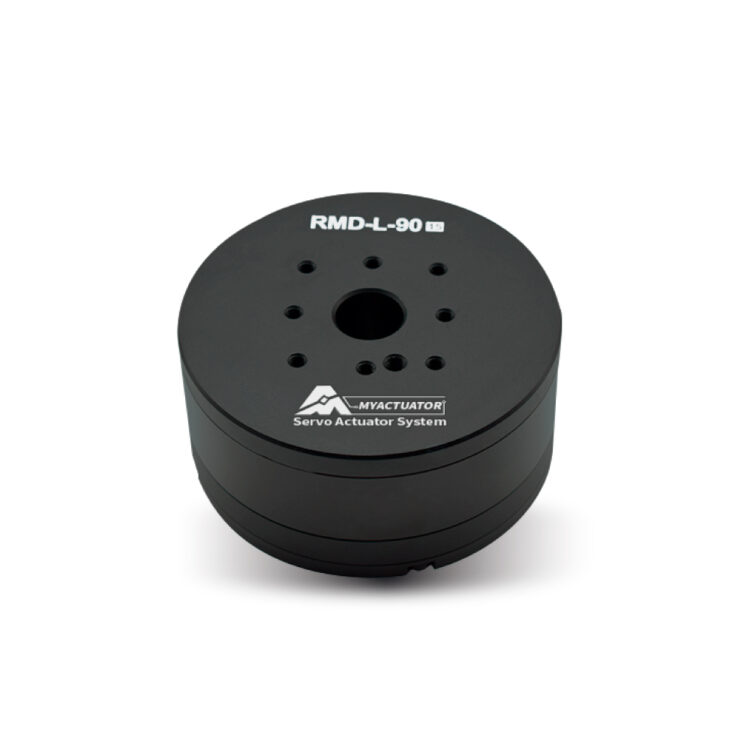

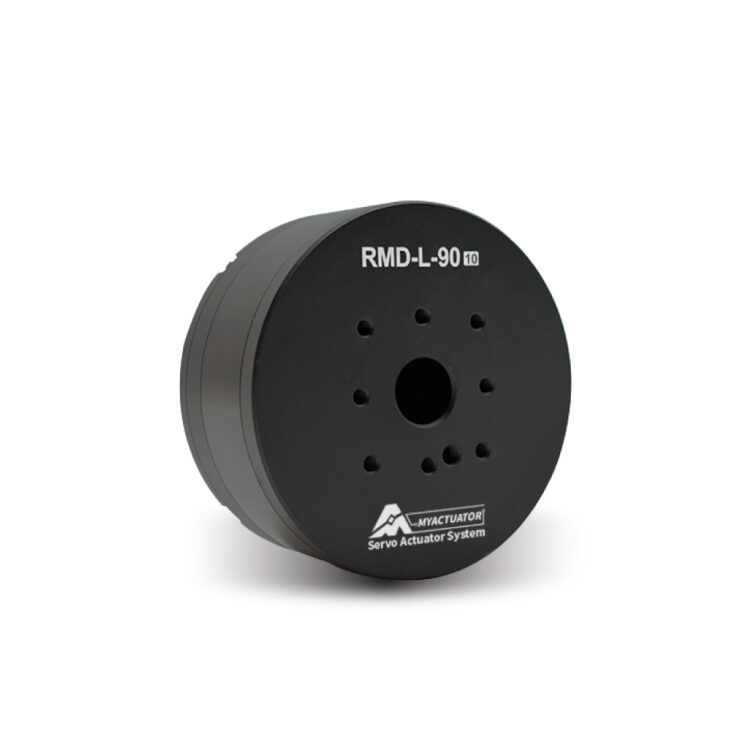

RMD-L-9015-35T Three Closed Micro Motor External Rotor Brushless Direct Drive Servo Motor Wing

$175.00

  • Smart DC motor integrated with controller 24V 36V 1.07N.M 450RPM 690RPM Most popular brushless motor
  • High Precision Absolute Value Encoder
  • High-Performance RbFeB Permanent Magnet
  • High-strength Lightweight Aluminum
  • High-Performance Import BearingUse

Out of stock


Ships From: China

Supplier: MyActuator SKU: RMD-L-9015-35T 12-30v Categories: , , , , Tags: , , , , , , ,


Technical Specifications

  • Product model: RMD-L-9015-16T
  • Turns(T): 16
  • Nominal voltage(V): 24
  • Max Seed(rpm): 690
  • Nominal Seed(rpm): 450
  • Nominal current(A): 3.27
  • Nominal torque(N.M): 1.07
  • Resistance: 1.15
  • Wire connect: Y
  • Phase to phase inductance(MH): 3
  • Speed constant(rpm/v): 29
  • Torque constant(N.M/A): 0.31
  • Rotor inertia(gcm^2): 2860
  • Number of pole pairs:14
  • Motor weight(G): 510
  • Working temperature(°C): -20~80°C
  • Max demagnetize temperature(°C): 120°C
  • Drive(V): DRC10
  • Input voltage(V): 8~36
  • Current(A): Normal:8A Instant:15A
  • Nominal power(W): 200
  • Communication: CAN BUS
  • Encoder: 14-bit magnetic encoder
  • Baud rate (bps): 1M
  • Communication frequency(HZ): 2K
  • Control frequency: Torque loop:24KHZ Speed loop:8KHZ Position loop:4KHZ
  • Control mode: Torque loop(current loop)/speed loop/position loop
  • S-Curve: YES

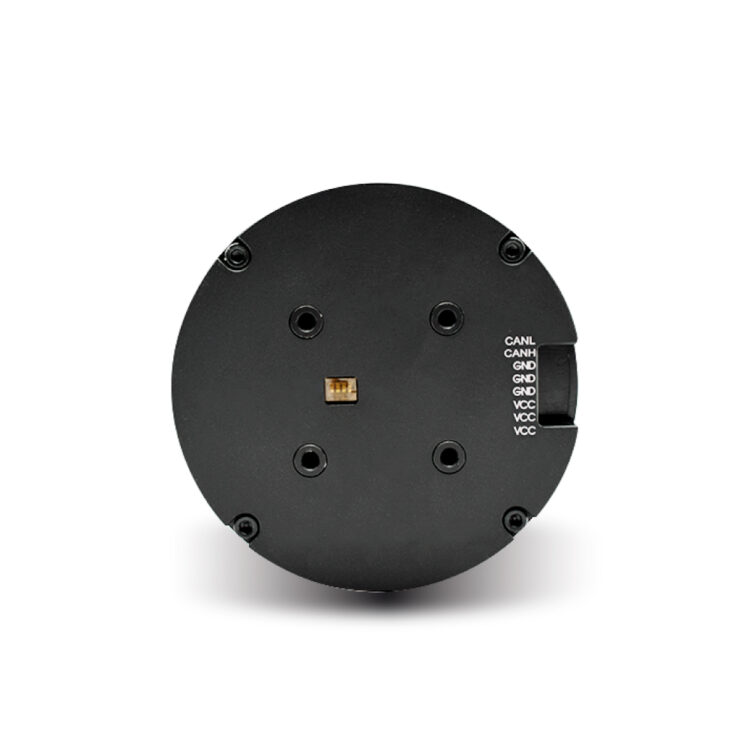

  • Connector: ZH1.5/8PIN
  • Temperature sensor: YES
