T-DRONES Ultra Long Endurance Max 240mins VA23 Fixed Wing VTOL Drone for Industrial Uses

$7,900.00


Note: The flight controller, Radio with receiver, and battery are not included. You need to purchase them separately.
Battery: Please buy this battery X2PCS for T-DRONES VA23 VTOL:Ares Upgraded Solid Li-ion 6S 30ah Battery – Oz Robotics

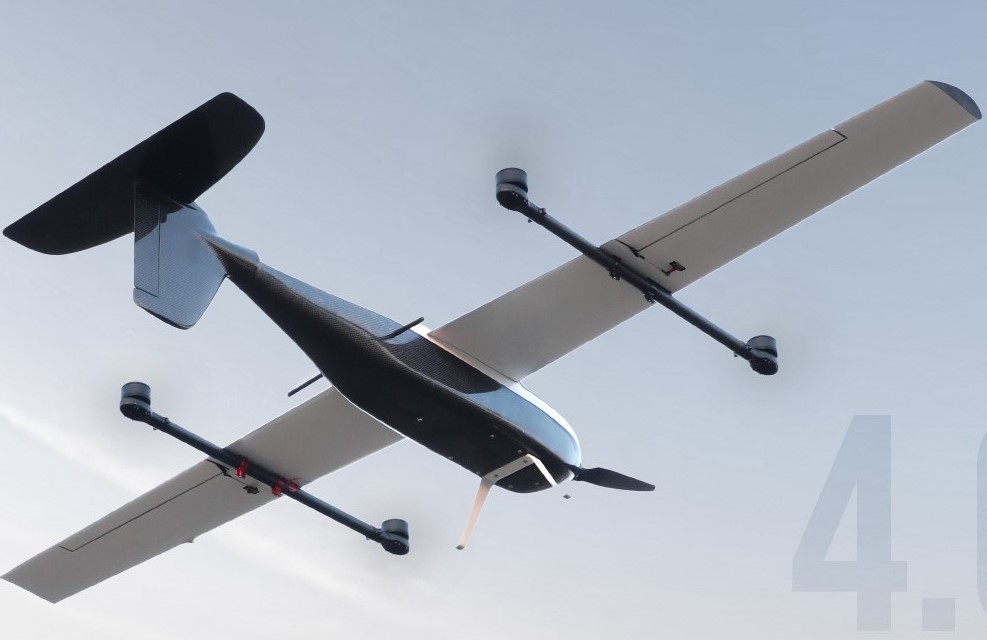

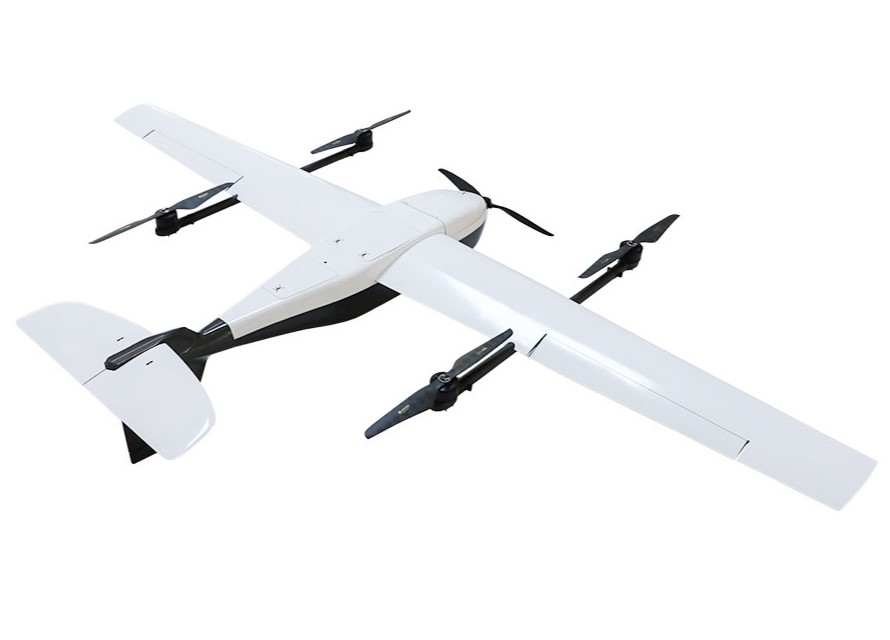

The VA23 is a long-endurance eVTOL fixed-wing UAV with an unloaded flight time of more than 240 minutes and a 1.5kg load over 180 minutes flight times.

It has a power management module, a locking propeller function, and lightweight and durable carbon fiber material, allowing longer flight times.

Ultra Long Endurance VTOL for Industrial Applications

  • Ultra long-endurance (Max. 240mins)
  • Lightweight with carbon fiber material
  • The locking propeller design
  • Quick assembly and disassembly

TECHNICAL PARAMETERS
Model VA23
Frame Length 1250mm
Frame Weight 2kg
Wingspan 2300mm
Take off Weight 12.5kg
Frame Material Carbon Fiber
Flight Time Max. 240min(Without Payload); Max. 180min(1.5kg payload)
Payload 2.5kg
Max Range 240km
Wind Resistance Level 5
Working Temperature -10-40℃
Control Range 10km-30km
Cruising Speed 18-20m/s
Max Flying Speed 35m/s
Max Take-off Altitude 4500m
Recommended Battery 12s 22000mah/12s 27000mah/12s 30000mah



Note: The flight controller, Radio with receiver, and battery are not included. You need to purchase them separately.
