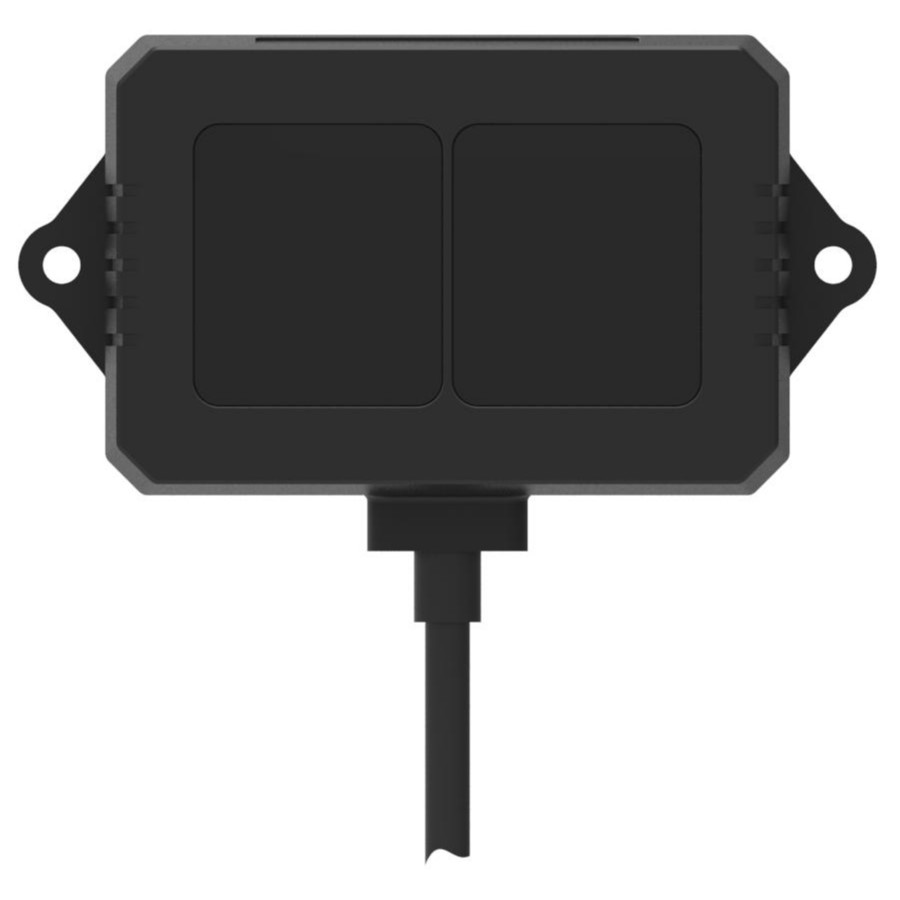

TF02-Pro LiDAR Ranging Level Sensor with 40m for Drones, UAVs, Robots, and Smart Parking

$87.90

  • Detection Range: 0.1-40m.
  • Accuracy: Centimeter-level (1% Relative error).
  • Detection Frequency: 1~1000Hz.
  • Protection level: IP65.
  • Anti-ambient light: Function under 100k Lux ambient light.
  • Power: 5VDC,

TF02-Pro LiDAR Ranging Level Sensor with 40m for Drones, UAVs, Robots, and Smart Parking

The TF02-Pro LIDAR ToF Optical Ranging Sensor is a unidirectional LiDAR, mainly used in height ranging and terrain-following of drones, supporting flight controls like Plixhawk, APM, TopXGun, EFY Technology, aiAero, DAISCH, etc. The protection design of the TF02-Pro is based on the IP65 level, which prevents it from dust, water, and corrosion. It is anti-inferential from the intense light outdoors. It can work under 100K lux without temperature, humidity, light, electronics, and airflow interference.

Benewake LiDAR sensor TF02-Pro application video

High sensitivity, measuring distance up to 40 meters, accuracy in cm level. Scan frequency up to 1000Hz, real-time distance detection with a 500 times/second refresh rate for more accurate data. TF02-Pro has a complete system containing a protective shell made of materials with a high transmittance of infrared, which doesn’t affect the optical performance.

It has been widely used in height fixing and terrain-following of drones, especially in agriculture. As a considerably mature product in the market, TF02-Pro LiDAR Laser Rangefinder Sensor has collected a large amount of experience and actual data in different situations, which has been taken as feedback for further improvements of the product itself. Meanwhile, to guarantee the reliability of the TF02-Pro, we conducted a rigorous seismic test, and the performance of the TF02-Pro turned out excellent.

Typical Applications

  • Robot Obstacle avoidance
  • Drones UAV Anti-collision
  • UAV Auto landing
  • UAV Height fixing / Distance keeping
  • UAV Terrain following
  • Level Measurement
  • Robots Obstacle avoidance
  • Tank volume / Bins volume/ Silo material level Detection
  • Smart Parking
  • Crane safety Operations
  • Wheel Ahead Detection/Alert
  • Vehicles Position Sensing/vehicles counting
  • Vehicles Detection for toll Gate Control
  • People Counting
  • Triggering Switch
  • Part of Rotating LiDAR
