Discover how Zora Robot can improve your life. Always and Everywhere!
The world’s most popular Humanoid Robot – It comes with the free lifetime ZoraSolution Software Update (embedded presentation). The V6 is available with ZoraSolution from March 2019.
Our robot equipped with the Zora Solution allows you to create all the applications and behaviors you have in mind, regardless your programming or coding skills. Zora comes with all the necessary operating software and tools. Zora speaks English, German, Chinese, Japanese, Dutch, French, Finnish and Spanish.
People use the Zora Robot all over the world in many different ecosystems. You can create very easily whatever you have in mind. The only limit is your creativity. And the result is always amazing!
ZoraBots is an interactive and caring platform solution which runs on the world’s most popular humanoid robots. ZoraBots makes friendly, intelligent companions with just one goal: making your life better- more comfortable, fun, healthier and relaxed.
- Who helps you rehabilitate?
- Who practices with your children?
- Who motivates you until you feel better?
- Who takes care of you?
- Who keeps you fit?
Zora is there for you, for young and elderly people, for those who need help. The first robot in the world that takes care of you. Zora is based on the NAO robot of Softbank Robotics.
Zora is there for you, for young and elderly people, for those who need help. The first robot in the world that takes care of you.
ZoraBot can be used in following applications
- Hospitals and elder care facilities
- Special education
- Retail shops
- Hotels and restaurants
- Events and exhibitions
- and do more

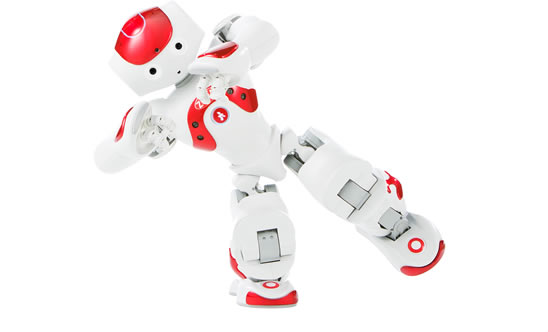

The robot’s unique senses is always balanced
Zora is the caring solution of the NAO robot of Softbank Robotics which has a human shape (57 cm) and 25 degrees of free movement. Whether walking or lying down, she is always balanced.
Zora is based on the NAO product of Softbank Robotics.
See the PDF Version in High Resolution

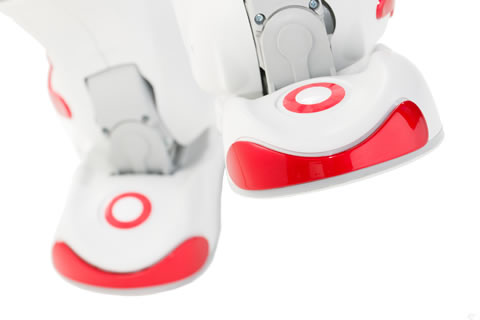

Expert in exploration
With her sonar and the many sensors in her head, hands and feet, she has a perfect image of her surroundings.
Listens and speaks
Four directable microphones and speakers allow the robot to listen and speak to people in a natural way.

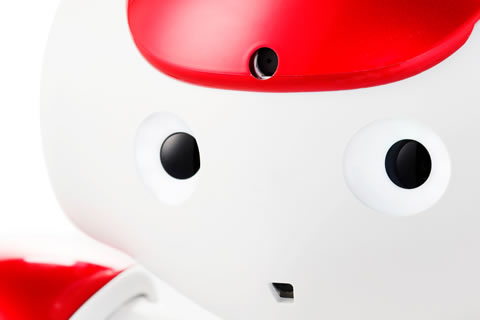

Beautiful eyes with a sharp view
The NAO robot on which Zora is based looks beautiful, has nice eyes, and can see very well thanks to two high-resolution cameras that record every tiny detail.
Zoora Weight is about 5.5kg
Technical information of Zora
Height (cm): 57,4
Depth (cm): 31,1
Width (cm): 27,5
Processor: Atom E3845
CPU: Quad Core
Clock speed: 1.91 GHz
RAM: 4GB DDR3
Nominal voltage/capacity: 21,6V / 2,9 Ah
Max charge voltage: 25,2 V
Recommended charge current: 1,8 ~ 2,1A
Max charge/discharge current: 2,1A / 2,0A
Energy: 62,5 Wh
Charging duration: 90 min
Ethernet: 1 RJ45 – 10/100/1000 base T
Wifi: IEEE 802.1 a/b/g/n
Security: 64/128bit: WEP, WPA/WPA2
Loudspeakers & Microphones: 2 loudspeakers (left and right) representing the ears
4 microphones: Front left, Front right, Back left, Back right
Sensitivity: 250 mV/Pa +/- 3dB at 1 kHz
Frequency range: 100 Hz to 10 kHz (-10 dB relative to 1 kHz)
2 emitters (top) and 2 receivers (bottom)
Resolution: 1cm-4cm (depending on the distance)
Detection range: 0.2m – 0.8m.
Under 0.2m there is no distance information. Robot only knows that there is an object present.
Above 0.8m the value returns a estimation
Effective cone: 60°
Video camera, Leds, FSR & inertial unit
See following documentation:
Joint position sensors, Motors & Contact and tactile sensors
See following documentation:
Joint position sensors
Contact and tactile sensors
See this documentation page of Softbanks for all the details
Links, Joints and Body frames
Effector and Chain definitions & Predefined postures
Effector & Chain definitions
Actuator & Sensor list
See this documentation page of Softbanks for all the details
ID: Nao Release: 220.127.116.11
Builddate: 03/12/2018 18:07:05 UTC
Build ID: nao-x86-18.104.22.168-20181203180705
Build tag: naoqi-jenkins-release-2.8_build-naoqi_nao-atom-15
Toolchain: Yocto SDK 3.3.24
Name: NAOqiOS (based on Yocto)
Name: Linux Processor type: 64-bit
