Ultra-Small Size Bluetooth Low Power and Ultra-Low-Cost Dual Mode Bluetooth Module TS-M1020D

Ultra-Small Size Bluetooth Low Power and Ultra-Low-Cost Dual Mode Bluetooth Module TS-M1020D

Original price was: $3.30.Current price is: $2.80.

The module is a Bluetooth 5.2 chip integrated with the BLE+SPP dual Bluetooth protocol, which offers excellent stability and compatibility.


Ships From: China
Supplier: Tecksay SKU: TS-M1020D Categories: , , Tags: , , , More From:

Ultra-Small Size Bluetooth Low Power and Ultra-Low-Cost Dual Mode Bluetooth Module TS-M1020D

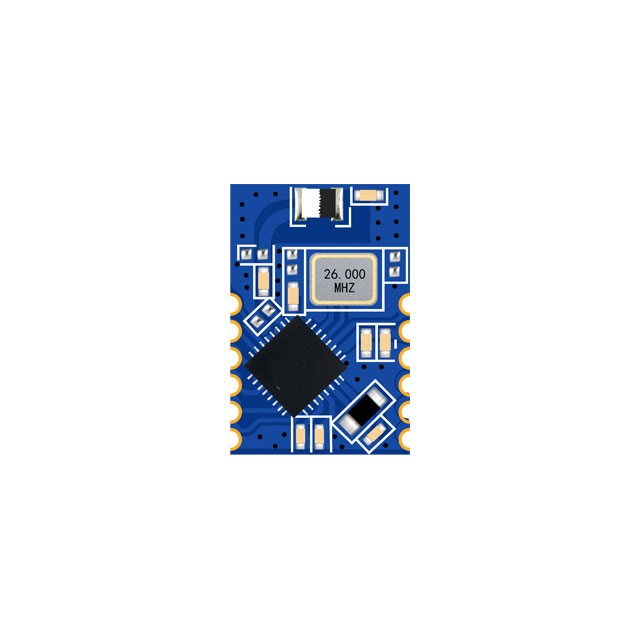

TS-M1020D is an 8*12mm ultra-small size Bluetooth low power ultra-low cost Bluetooth module. The module is a Bluetooth 5.2 chip, integrated with BLE+SPP dual Bluetooth protocol, with excellent stability and compatibility. Module default Bluetooth serial port transparent transmission, the user can change the serial port baud rate, device name, and other parameters according to the provided AT instructions, flexible operation, and simple use. Suitable for various development projects of customers.

Features

  • Model No: TS-M1020D
  • Bluetooth Version: BLE 4.2 + SPP 3.0
  • Frequency Band: 2.402GHz-2.480GHz ISM band
  • TX Power: -20 dBm~+4 dBm
  • Receive Sensitivity: -95 dBm
  • Air Rate: 250Kbps/1Mbps/2Mbps
  • Antenna: Ceramic Antenna
  • Advise Range: 80m
  • Memory: 256KB FLASH+128KB RAM
  • Size: 12*8*1.5mm
  • Pin/GPIO: 12/7
  • Power Supply: 3.1~4.35V
  • Operating Temperature: -20℃~+85℃
  • Peripheral Interface: UART/SPI/I2C/ADC
  • Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s

Applications

  • Smart home
  • Location tracking
  • Intelligent educational equipment
  • Measurement and monitoring system
  • Industrial sensors and controls
  • Medical equipment monitoring and wireless control
