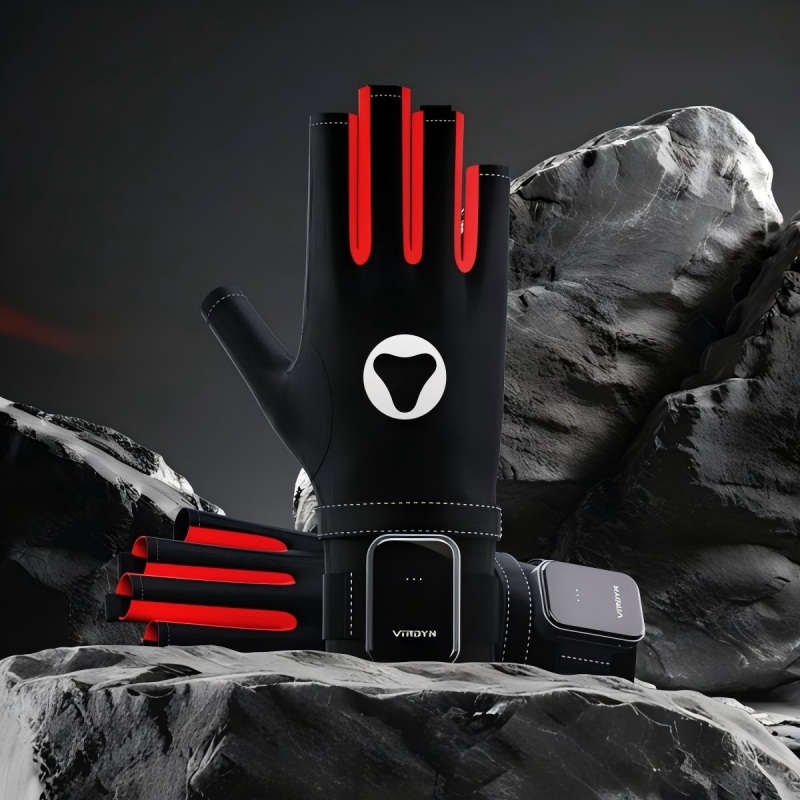

Virdyn mHand Pro Inertia Motion Capture Gloves for Virtual Reality
There are 16 sensors on the back of both hands and fingers. Equipped with the “mHand Studio” engine, the hand gestures can be transcribed into the movements of the 3D model in real-time. The built-in, fully self-developed gesture recognition model supports 15+ gesture types and various VR interactive content. It supports SDK, supports an optical tracker for hand position tracking, and is compatible with Windows and Android systems.
Features
- The number of sensors is increased to 16, and the capture is more detailed
- Dual chip mode, refresh rate up to 800HZ
- Equipped with dual-line fast charging, 8 hours of long battery life, easy to deal with various application scenarios
- Equipped with a vibration feedback module, seven vibration modes to choose from
- Antibacterial fabric gloves, removable and washable
- Supporting C++SDK, C#SDK, Unity3D, UE4.24-4.27, UE5.0-5.3, IClone7/8, Maya, Blender, MotionBuilder, 3DS Max, UDP broadcasting
- Support Tracker spatial positioning and compatible with Windows and Android systems
- Supporting HTC VIVE/Oculus Quest 2 HMD/Pico
Specifications
Glove weight: | ≤170g |
Glove material: | Integrated breathable, antibacterial cloth gloves, removable, washable, and replaceable |
Sensors: | 16 |
Battery type: | Lithium battery |
Operating voltage: | 5V |
Endurance: | ≥8h |
Transmission method: | Adaptive frequency hopping 2.4 GHz wireless |
Data Latency: | <16ms |
Transmission distance: | ≤40m |
Transmission frame rate: | 60Hz/72Hz/80Hz/96Hz/120Hz |
Sensor core algorithm: | Independent research and development of multi-level AHRS asynchronous fusion algorithm |
Attitude capture range: | 360 ° omnidirectional motion posture output |
Sensor refresh rate: | ≥800Hz |
Attitude accuracy: | ROLL<0.5°PITCH<0.5YAW<1.5° |
Angular resolution: | <0.02° |
Acceleration range: | ±160m/s2(16g) |
Gyroscope range: | ±2000dps |
Magnetometer range: | ±4.9Gs |
Factory calibration: | Self-developed 24-plane and 9-parameter multi-sensor calibration technique |
Feedback function: | Bimanual vibration feedback |
Integrations
Glove Size Chart: At the checkout page in the Order Notes (optional) box, please mention the size you want us to ship
Package Includes
- mHand Pro gloves * 1 pair
- USB cable * 2
- USB-to-USB adaptor * 1
- Tracker holder * 2
- Toolkit * 1
- Charger * 1
- Receiver * 1
