XT8 45W Plug and Play Laser Kit for All CNC Machines

$1,299.00

  • Universal PLH3D-XT8 Laser Upgrade Kit
  • Specs: 45W Optical Power, HD 125DPI 180um spot, max wood cutting thickness 20mm (¾” )
  • Best For: CO2-like Ultra High Speed Cutting and Engraving, Thick Materials Cutting
  • Includes: Laser Head, Air Nozzle, CNC Adapter Pro, Laser Safety Glasses, Beam Cover, Mount, and More.

HTS Classification: 25
Export Classification: 8456119000

Ships From: Poland

Brand: OptLasers SKU: 006301 Categories: , , Tags: ,

XT8 45W Plug and Play Laser Kit for All CNC Machines

What’s included in the Universal PLH3D-XT8 Laser Kit? This Plug & Play Laser Upgrade Kit from Opt Lasers is the perfect solution for enhancing your CNC machine with precision cutting and engraving capabilities. Designed by the original creator and industry leader in CNC laser heads, the kit includes everything you need for quick and hassle-free installation. Fully compatible with almost all CNCs and trusted by professionals worldwide, it ensures maximum performance and reliability from day one.

  • 5-year Opt Lasers Warranty
  • 30-Day Satisfaction Guarantee for Returns
  • Lifetime Technical Support
  • #1 in Customer Support
  • Unmatched Durability and Reliability
  • Optional Collision or Laser Head Drop Insurance
  • Product Originating from the Laser Head Concept Creator
  • Made in Poland, EU

Everything you need to get started — with no hidden costs or missing components!

  • PLH3D-XT8 Laser Head – Our most powerful and advanced blue laser module
  • PLH3D-CNC Adapter Pro – Connects your CNC with intelligent safety features
  • Laser Safety Glasses – CE-rated protection against blue laser light
  • Dedicated Signal Wire – Optimized for stable and interference-free signal transmission
  • Dedicated Mount – Secure and rigid mounting system
  • Height Reference Tool – Helps quickly set the correct working distance
  • Power Supply – High-quality, low-noise 24V PSU with international plugs
  • Cable for Laser Head – Durable cable with matching connectors

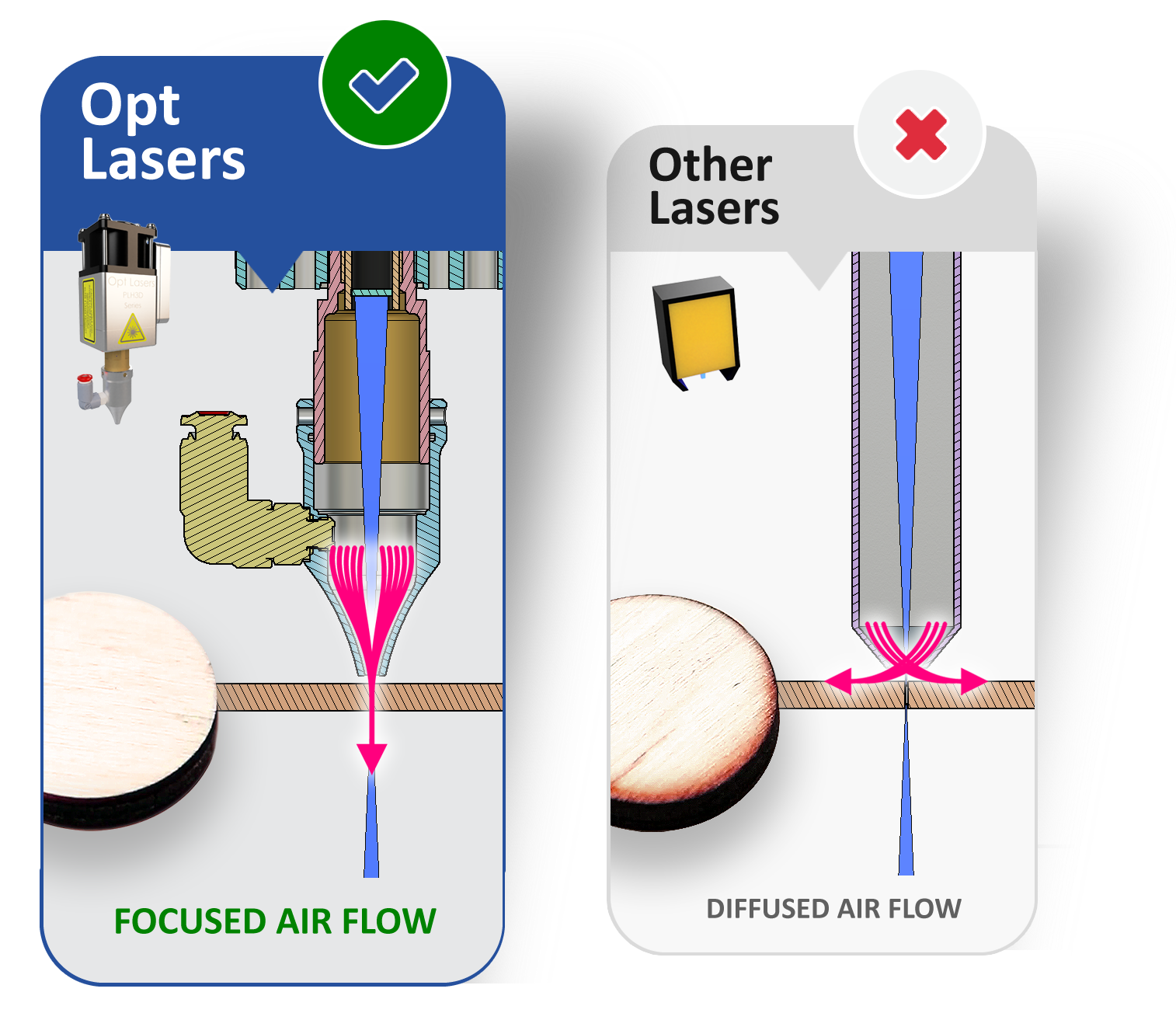

  • OptiShield – Safety beam guard with air nozzle
  • Set of CNC Laser Stickers – Mark your machine for safe laser use
  • Set of Screws – All screws needed are included in the kit

Product Technical Specifications

Model PLH3D-XT8
Maximum Optical Power 45 W
Typical Spot Size (X × Y @ WD 21 mm) ≈180 × 180 μm
Dimensions of Laser Head (L x W x H) 76 x 89 x 194 mm
(3 x 3,5 x 7,64 in.)
Weight of Laser Head, Typ. 1050g (2.31 lb.)
With LaserDock: 1230g (2.71 lb.)
Flow Rate of Fan 92 m3/h (53 CFM)
Fan Noise 58 dBA
Mounting Hole Pattern 5x 4 holes, 24 x 15 mm
(0.94 x 0.59 in.)
Mounting Hole Type M3 x 0.5 x 3 mm
Max. Ambient Temperature 40°C (104°F)
Modulation Input PWM/TTL,
0 – 24 V
Recommended PWM Base Frequency 1 – 10 kHz
Max. Modulation Bandwidth 30 kHz
Modulation Input Impedance >1 kΩ
Power Supply Unit Voltage 24 V
24 V PSU Min. Current 8 A
Maximum Power Consumption 170 W
