10 Years Battery Life DA14531 Long Range BLE 5.1 Smart Waterproof Beacon with Battery Replacement FSC-BP104D
Feasybeacon FSC-BP104D adopts Bluetooth 5.1 low energy technology, ten years super long work life guaranteed via a high-quality AAA battery, with multi-functional FeasyBeacon APP (Android & iOS), it simultaneously supports iBeacon, Eddystone (URL and UID), AltBeacon.
Features

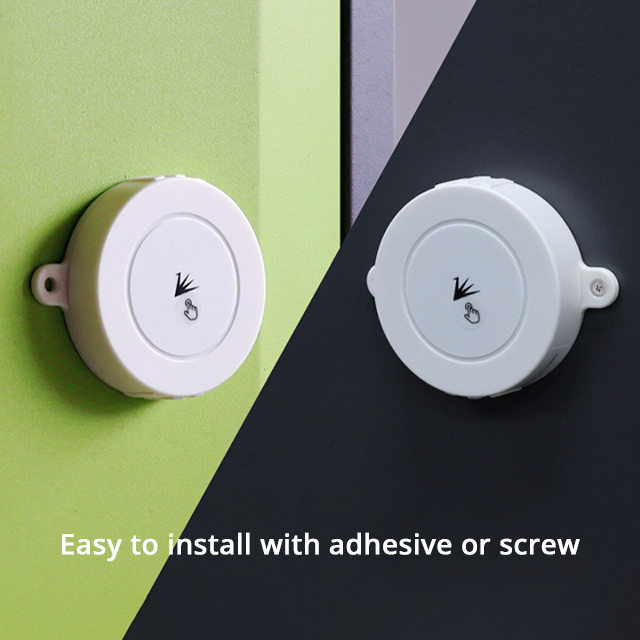

- FSC-BP104D is an IP67 waterproof beacon, patent design with screw slot, and easy to install. It’s based on the Dialog DA14531 BLE 5.1 chipset.
- Support communicating with the FeasyBeacon app and apps based on the FeasyBeacon SDK.
Main Highlights for BP104D Proximity Marketing Beacon:
- Bluetooth 5.1 beacon, DA14531, work distance up to 400m
- Product Size: Φ64.7mm H:17mm
- Comply with Google Eddystone(URL,UID), iBeacon, Altbeacon
- Support ten slots broadcast, which can be configurable for non-connectable advertising frames
- Ten years super long work life guaranteed via high-quality AAA battery
- 6. IP67/IP68 waterproof (optional)
Model number
|
FSC-BP104D
|
Chipset
|
Dialog DA14531
|
Standard
|
BLE 5.1
|
Protocols
|
iBeacon, Eddystone, AltBeacon
|
Max number of broadcast
|
Ten slots
|
Power Supply
|

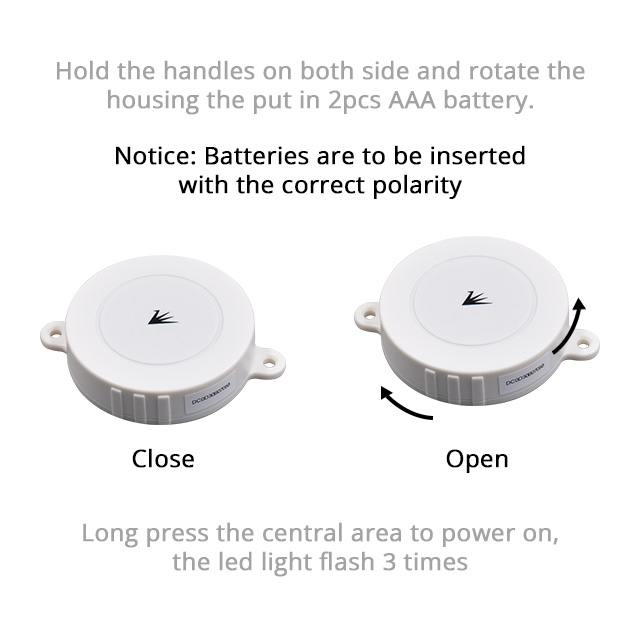

2 * AAA (LR03), the battery is not included in the package
|
Transmit power range
|
-19.5 – +2.5dBm
|
Supports system
|
iOS 7.0+, Android 4.3+
|
Broadcast range
|
Up to 400m in open space
|
Battery life
|
10 years by default setting(Broadcast interval: 1300ms; Tx power: 0dBm)
|
Antenna
|
F-shape PCB antenna
|
Material
|
ABS plastic
|

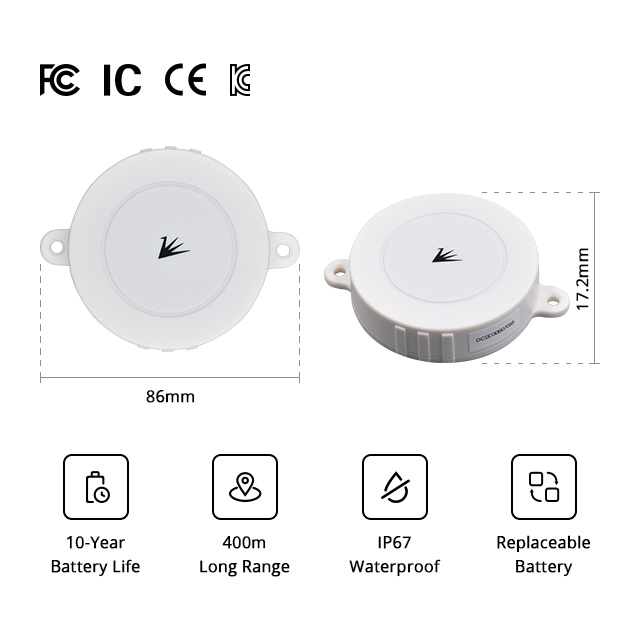

Size
|
86mm(L)*65.7mm(W)*17.2mm(H)
|
Net weight
|
28g
|
Applications:
- Asset Tracking
- Personnel Safety
- Indoor Positioning
- Proximity Marketing
- Workflow Management
- Warehouse Management
