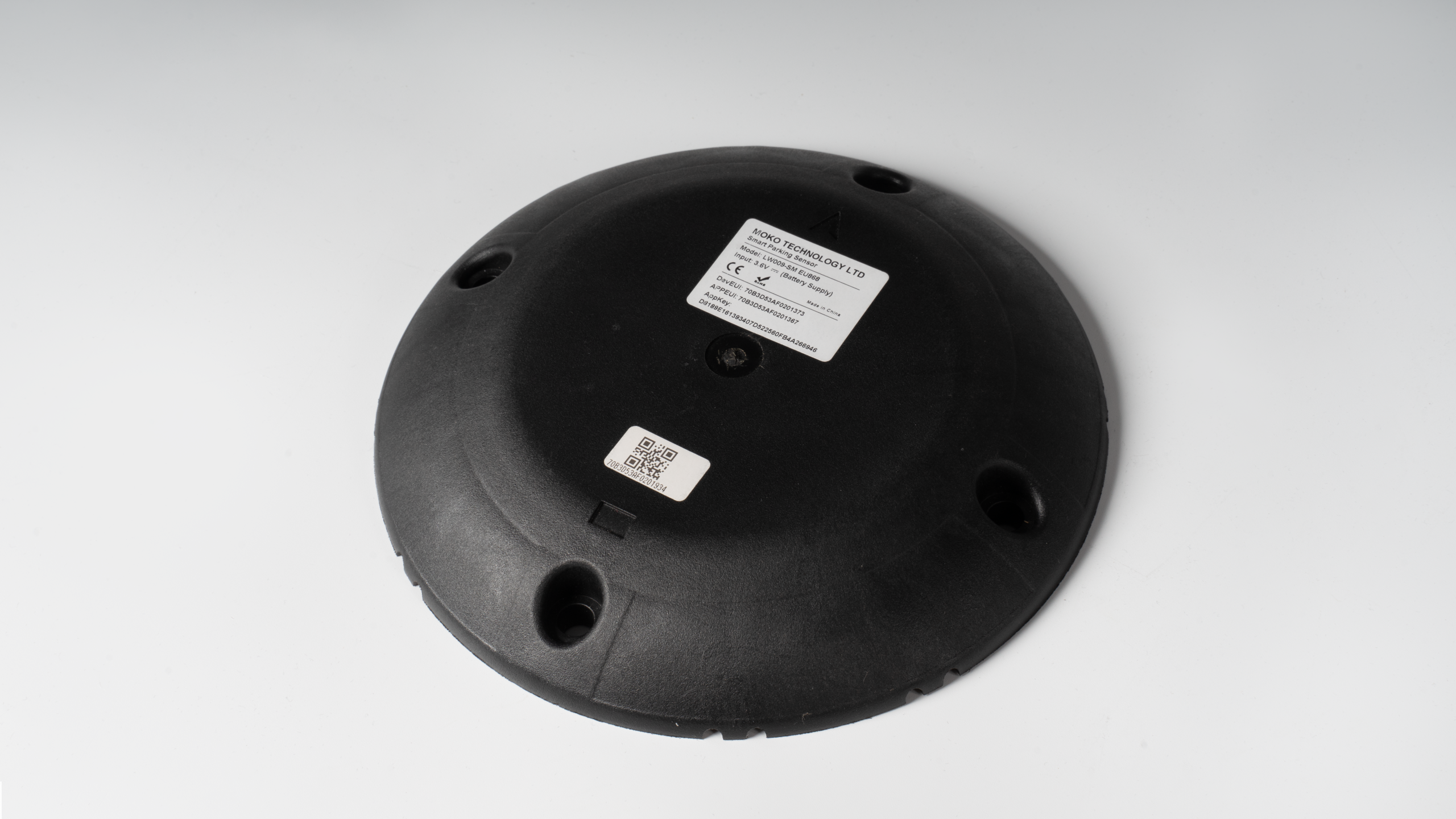

MOKO LW009-IG LoRaWAN Inground Parking Sensor (only EU868 AS923 Frequency Available)

Original price was: $200.00.Current price is: $195.00.

Noted: Only EU868 and AS923 frequency band Available for now. Please DO NOT order when you need other frequency such as US915, IN865, AU915 etc.

LW009-IG Wireless Vehicle Detector is a parking space status sensor that supports LoRaWAN long-distance wireless standards. It integrates microwave radar and geomagnetic detection technology. In addition, it adopts an advanced signal detection algorithm to accurately realize the functions of parking space occupancy detection and parking time statistics.

  • High reliability: the accuracy of dual-mode detection is over 99%
  • Long transmission distance (LoRaWAN): 500m
  • Easy installation: built-in battery, no wiring required, easy to install, shortened installation time
  • Easy maintenance
  • Ultra-low power consumption, more than five service years under typical scenarios
  • Bluetooth wireless upgrade and calibration
  • Detachable sleeve structure design. supported easy after-sales maintenance


Made In: China

Supplier: MOKOSmart SKU: LoRaWAN Surface-Mount Categories: , , , Tags: , , ,

LoRaWAN Inground Parking Sensor

LW009-IG wireless vehicle detector is a wireless sensor that meets LoRaWAN long-distance wireless standard, and it is integrated with a geomagnetic sensor and microwave radar sensor. Using an effective dual mode joint algorithm, the detector realizes a precise parking spot detecting function. It can be widely used in intelligent traffic, smart community, smart parking, and other applications. It is compatible with the LoRaWAN protocol and can communicate with a gateway compatible with the LoRaWAN protocol.

LoRa Wireless Specifications

  • LoRa Protocol LoRaWAN V1.0.3 Class A
  • Lora Frequency: EU868/AS923
  • Spreading Factor: 125 kHz ~ 500 kHz
  • Tx Power: Max 17dBm
  • Sensitivity: -135 dBm(SF12, 125KHz)
  • LoRa Communication Distance: Up to 500m

Performance Specifications

  • Detection Accuracy: >99%
  • Detection Algorithm: Dual-mode -Three-axis joint detection algorithm and Radar
  • Installation Method: Flush Type
  • Upgrade Method: Remote Wireless upgrade
  • State Monitor: Low voltage alarm, disturbance alarm
  • Power Supply: Built-in 3.6V Lithium battery, 38Ah
  • Power switch: Use Bluetooth to activate
  • Life Duration: >5 years under typical scenarios

Physical Specifications

  • Protection level: IP68
  • Operation Temperature: -40℃ ~ 85℃
  • Dimension: Φ: 130mm, H: 87mm
  • Weight: 800g
  • Force Resistance: 10 tons
