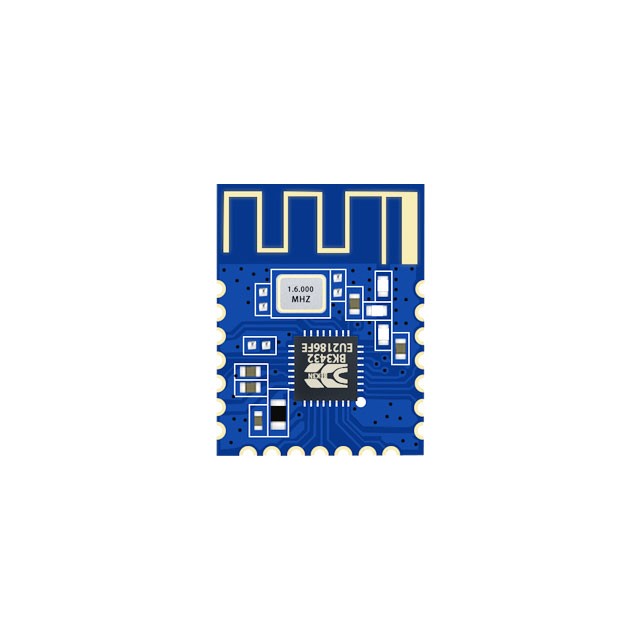

Low-Cost, High-Stability Bluetooth Module TS-M1030D
The TS-M1030D is a compact Bluetooth Low Energy (BLE) Bluetooth module, featuring a Bluetooth 5.0 chip and support for BLE 4.2 and BLE + SPP dual-mode protocols. It also supports AT commands, allowing users to modify parameters such as serial port baud rate and device name. Additionally, the data control module’s I/O ports can be directly accessed via an app for flexible and straightforward operation. This module offers outstanding stability, ultra-low cost, minimal power consumption, and high receiving sensitivity.
Features
- Model No: TS-M1030D
- Bluetooth Version: BLE 4.2+ SPP 3.0
- Frequency Band: 2.402GHz-2.480GHz ISM band
- TX Power: -20 dBm~+4 dBm
- Receive Sensitivity: -97 dBm
- Air Rate: 250Kbps/1Mbps/2Mbps
- Antenna: PCB Onboard
- Advise Range: 80m
- Memory: 160KB FLASH+20KB RAM
- Size: 17*13*1.5mm
- Pin/GPIO: 21/16
- Power Supply: 1.8~3.6V
- Operating Temperature: -40℃~+85℃
- Peripheral Interface: UART/SPI/I2C/ADC
- Serial Transparent Transmission Rate: BLE 4KB/s, SPP 16KB/s
Applications
- Smart home
- Location tracking
- Intelligent educational equipment
- Measurement and monitoring system
- Industrial sensors and controls
- Medical equipment monitoring and wireless control
