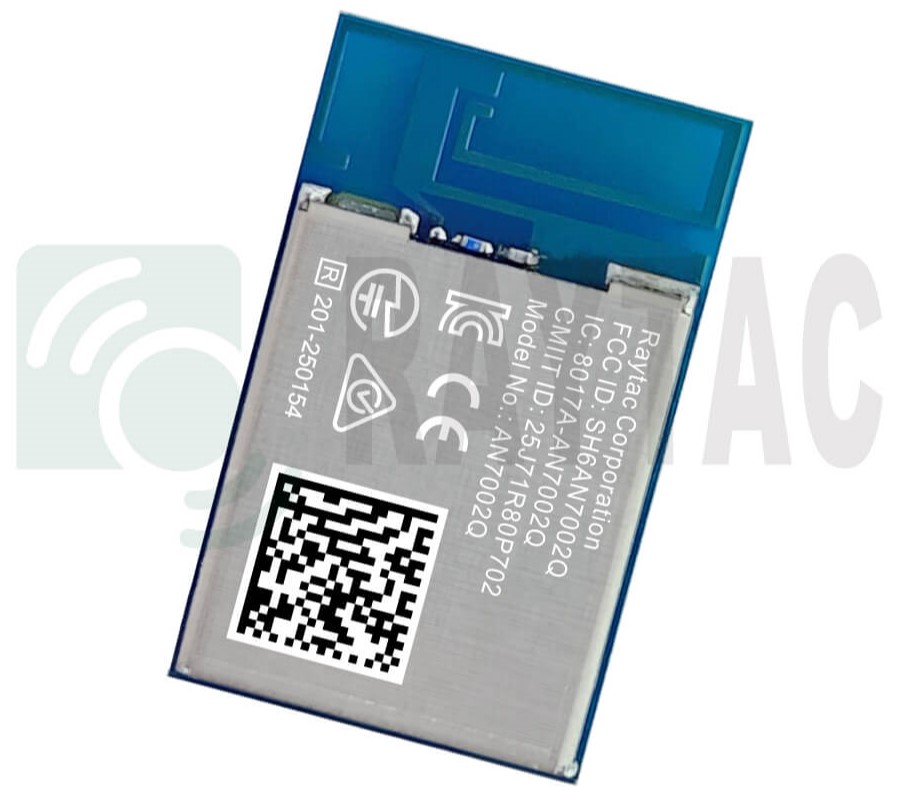

Nordic nRF7002 Wi-Fi 6 Module AN7002Q-P
Nordic nRF7002 Wi-Fi 6 Module AN7002Q-P - Image 2

Nordic nRF7002 Wi-Fi 6 Module AN7002Q-P

$6.30

Model No: AN7002Q

  • Nordic nRF7002 WiFi Solution
  • WiFi 6
  • Dual Band 2.4 GHz and 5 GHz
  • Wi-Fi specification: Wi-Fi 6
  • Complies with 802.11a/b/g/n/ac/ax
  • Supports Target Wake Time (TWT)
  • Supports Wi-Fi 6 Station (STA)
  • 20 MHz channel bandwidth
  • 64 QAM (MCS7), 86 Mbps PHY throughput
  • Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
  • RoHS & Reach Compliant.
  • RED-DA(EN18031) Compliant.
  • Dimension: 10.8 x 17.1 x 2.1 mm (0.43 by 0.67 by 0.08 inches)
  • PCB Antenna


Ships From: Taiwan
Brand: Raytac Corporation SKU: AN7002Q-P Categories: , , , , Tags: , , , , , , , , ,

Nordic nRF7002 Wi-Fi 6 Module AN7002Q

Raytac’s AN7002Q is a low-power Wi-Fi 6 module designed based on the Nordic nRF7002 companion solution, supporting dual-band operation in both 2.4 GHz and 5 GHz bands. The antenna ports are single-ended 50 Ω, supporting 20 MHz-wide channels, 1×1 Single-Input Single-Output (SISO) operation, and delivering a PHY data rate of 86 Mbps (MCS7). It can be paired with various MCUs that are Zephyr RTOS-compatible to enable Wi-Fi 6 features in the end product & is ideal for IoT, industrial automation, medical devices, smart home, wearables, wireless audio, location tracking, and similar embedded or low-power scenarios.

AN7002Q series is a wireless module that adds low-power Wi-Fi 6 capabilities to another System on Chip (SoC), Microprocessor Unit (MPU), or Microcontroller Unit (MCU) host.

AN7002Q is compatible with IEEE 802.11ax (also known as WiWi-Fi) and earlier standards, including IEEE 802.11 a/b/g/n/ac. It has been designed for IoT applications and is ideal for adding modern Wi-Fi capabilities to existing Bluetooth Low Energy, Thread, or Zigbee systems.

AN7002Q connects to the host SoC or MCU through a Serial Peripheral Interface (SPI) or Quad Serial Peripheral Interface (QSPI) serial interface (which can optionally be encrypted). It supports coexistence with other radio protocols through a dedicated 3-wire or 4-wire coexistence interface.

AN7002Q supports Station and Wi-Fi DiWi-Fi operation modes, as well as Software-Enabled Access Point (Soft AP) (Wi-Fi Wi-Fi only), and simultaneous station, Soft AP/Wi-Fi Wi-Fi station modes.
