NordicSemi Wi-Fi 6 + Bluetooth LE 5.4 Dual Module-AN02U53U
NordicSemi Wi-Fi 6 + Bluetooth LE 5.4 Dual Module-AN02U53U - Image 2
NordicSemi Wi-Fi 6 + Bluetooth LE 5.4 Dual Module-AN02U53U - Image 3

NordicSemi Wi-Fi 6 + Bluetooth LE 5.4 Dual Module-AN02U53U

$10.28

This module is ideal for IoT, industrial automation, medical devices, smart homes, wearables, wireless audio, location tracking, and similar embedded or low-power scenarios.


Ships From: Taiwan
Supplier: Raytac Corporation SKU: AN02U53U Categories: , , , , Tags: , , , , , , , , , More From:

Nordic nRF7002+nRF5340 Wi-Fi 6 + BLE 5.4 Dual Module AN02P53P

This module can be integrated into a single PCBA to enable dual wireless connectivity for Wi-Fi and BLE applications, making it ideal for IoT, industrial automation, medical devices, smart homes, wearables, wireless audio, location tracking, and similar embedded or low-power scenarios.

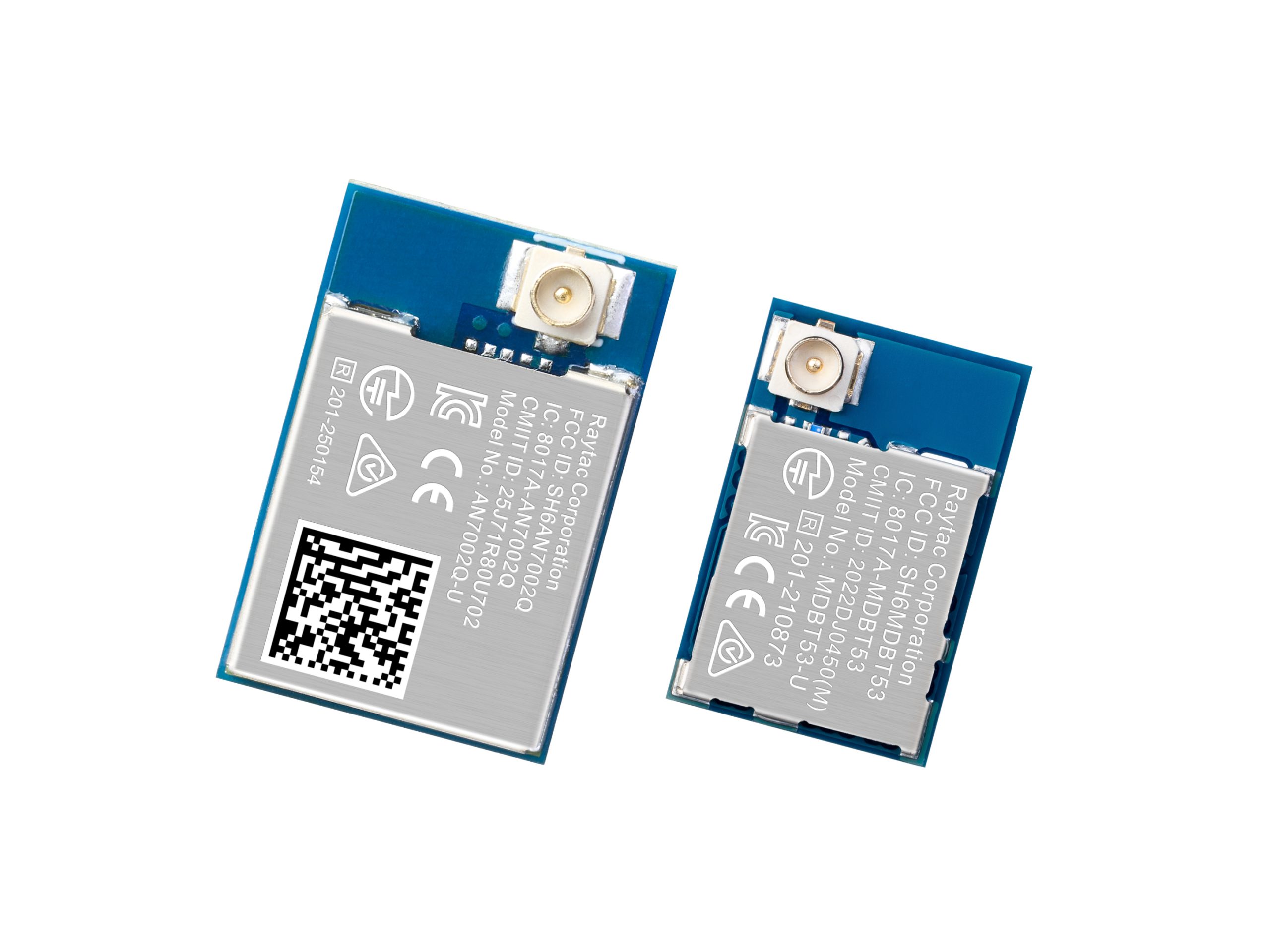

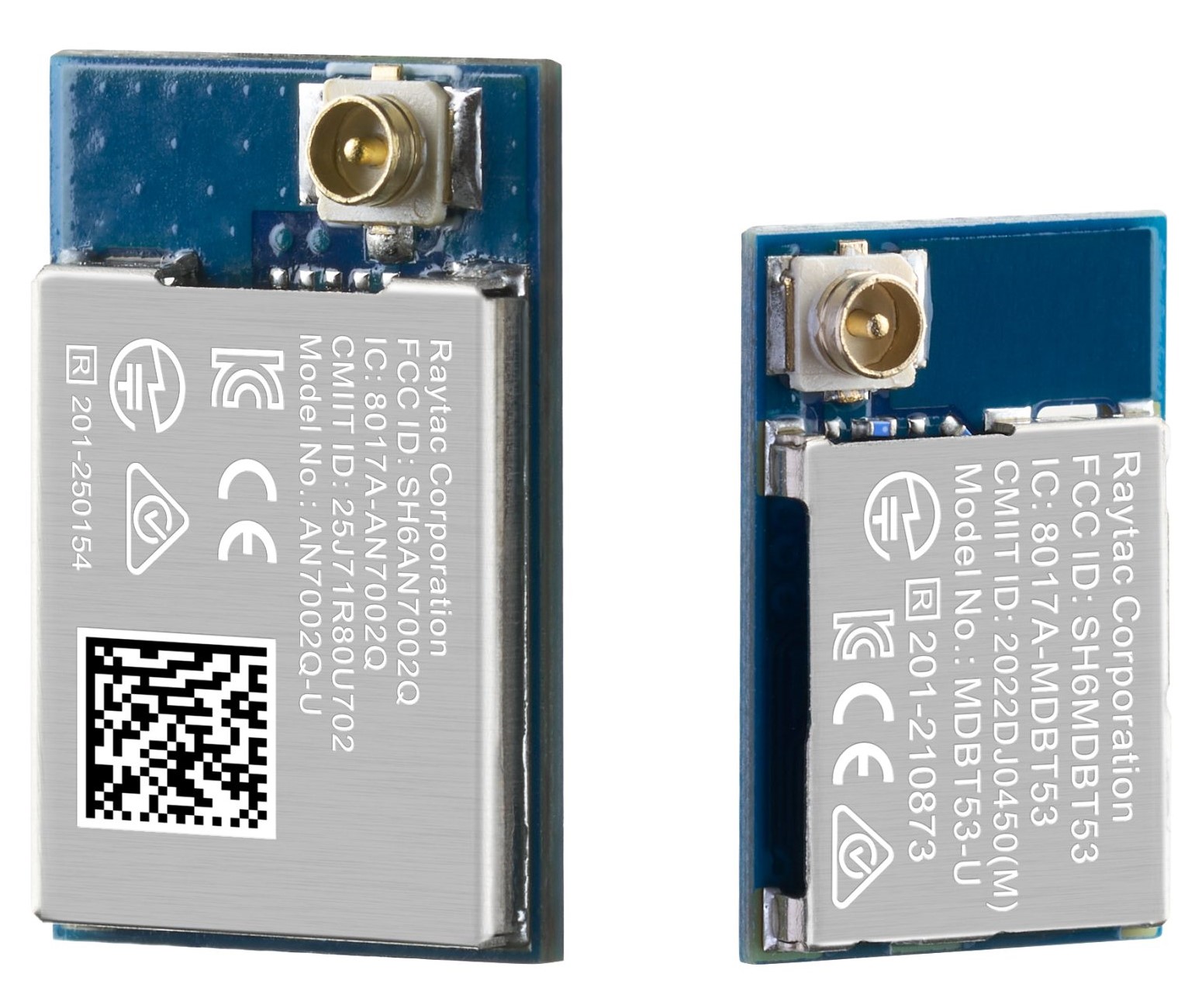

Raytac’s AN02U53U is a Wi-Fi + BLE bundle consisting of two independent modules:

  • 1 × AN7002Q-U: Wi-Fi 6 nRF7002 module with u.FL connector
  • 1 × MDBT53-U1M: BLE nRF5340 module with u.FL connector
  • Model No: AN02U53U

WiFi: AN7002Q-U

  • Nordic nRF7002 WiFi Solution
  • WiFi 6
  • Dual Band 2.4 GHz and 5 GHz
  • Wi-Fi specification: Wi-Fi 6
  • Complies with 802.11a/b/g/n/ac/ax
  • Supports Target Wake Time (TWT)
  • Supports Wi-Fi 6 Station (STA)
  • 20 MHz channel bandwidth
  • 64 QAM (MCS7), 86 Mbps PHY throughput
  • Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
  • RoHS & Reach Compliant.
  • RED-DA(EN18031) Compliant.
  • Dimension: 10.8 x 16.4 x 2.1 mm (0.43 by 0.64 by 0.08 inches)
  • u.FL connector for External Antenna

Bluetooth: MDBT53-U1M

  • Nordic nRF5340 SoC Solution
  • Dual-core Arm® Cortex® M33
  • 1MB/256KB Flash Memory; 512kB/ 64kB RAM
  • Bluetooth specification v5.2
  • Supports Bluetooth Direction Finding & Mesh
  • Supports Bluetooth low energy audio
  • Certifications: FCC, IC, CE, Telec (MIC), KC, SRRC, NCC, RCM, WPC
  • RoHS & Reach Compliant.
  • Dimension: 9.3 x 14.3 x 1.85 mm
  • 48 GPIO
  • u.FL connector for External Antenna
  • Interfaces: SPI, QSPI, High Speed SPI, UART, I2C, I2S, PWM, ADC, NFC, and USB
  • Operating temperature: -40 to +105°C
  • Highly flexible multiprotocol SoC, ideally suited for Bluetooth Low Energy, ANT+, Zigbee, and Thread (802.15.4) ultra-low-power wireless applications.
  • A recommended 3rd-party module by Nordic Semiconductor.

*Note: Please follow Raytac’s Design Guide and schematic recommendations during your design process.
