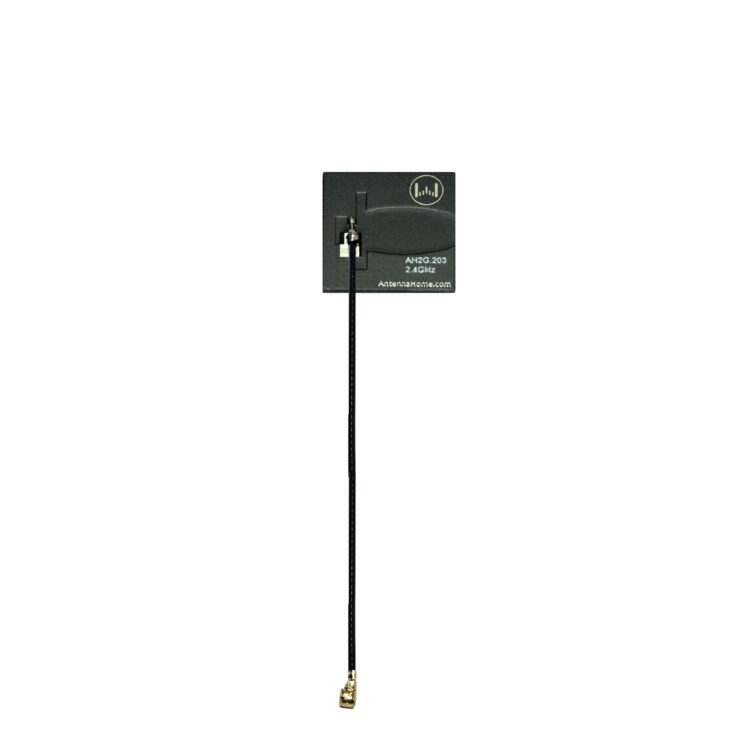

AntennaHome PCB2020 L120 1.13 Cable IPX, 2.4G for 802.11 b/g/n, 2.4G, BT, ZigBee, and Wi-Fi Products

$5.99

  • PN: AH2G.203
  • Frequency: 2400~2500 MHz
  • Weight: 1.2g/pc
  • Package: PP bag+Carton box
  • Application: 802.11 b/g/n, includes frequencies of 2.4G, Bluetooth, ZigBee, and Wi-Fi products

AntennaHome PCB2020 L120 1.13 Cable IPX, 2.4G for 802.11 b/g/n, 2.4G, Bluetooth, ZigBee, and Wi-Fi Products

Specifications

Frequency 2400~2500 MHz
Gain 2.0  dBi
Impedance 50 Ohm
VSWR ≤2.0
Polarization Vertical / Omni
Power Max 50 W
Conn&Cable IPEX&1.13Cable
Material FR4
Color Black
Mounting IPEX connector
Working Temperature -40 to +80
Size 20*20 mm
Weight 1.2g/pc

Type P N  Frequency Product Description
Spring AH1G.301 433MHz Spring DIP,433M antenna
AH1G.302 868/915M, Spring DIP,868M/915M, GSM900/1800M antenna
900/1800MHz
AH2G.304 2.4GHz Spring DIP,2.4G antenna
H50 Rubber AH1G.101 433MHz H50 Rubber SMA-J ,433M antenna
AH1G.102 868/915MHz, H50 Rubber SMA-J ,868M/915M,GSM900/1800M antenna
2G/3G
AH2G.104 2.4GHz H50 Rubber SMA-J ,2.4G
H50 Rubber AH1G.103 433MHz H50 Rubber SMA-J W,433M antenna
-JW AH1G.104 868/915MHz, H50 Rubber SMA-JW ,868M/915M,GSM900/1800M antenna
2G/3G
AH2G.105 2.4GHz H50 Rubber SMA-JW ,2.4G
H108 Rubber AH2G.101 2.4GHz H108 Rubber SMA-J ,2.4G
AH2G.102 5.8GHz H108 Rubber SMA-J ,5.8G
AH3G.101 824~2170MHz, H108 Rubber SMA-J ,2G/3G
2G/3G
H195 Rubber AH2G.103 2.4GHz, 5dBi H195 Rubber high gain SMA-J,2.4G
H200 BIAN AH3G.102 2G/3G/4G HB180 Rubber SMA-J ,3G/4G/5G
NB-IoT /CAT.1
PCB + Cable AH1G.300T 433M-915MHz 433M-915MHz PCB ANT
Internal Ant
AH2G.205T 2.4/5.8GHz 2.4/5.8GHz PCB ANT
AH3G.201T 824~2170MHz, 824-2710MHz PCB ANT
2G/3G
AHNG.200T 13.56MHz P3020 13.56MHz NFC/RFID  ANT
FPCB + Cable AH2G.205 2.4GHz FPC   L120 1.13cable IPX,2.4G
Internal Ant
AH3G.204 3G/4G/5G F6330 1.13 Cable IPX,3G/4G/5G ANT
CHIP SMD AH2G.302 2.4GHz K0801 CHIP SMD, 2.4G Antenna
OnBoard ANT
AH3G.303 2G/3G/4G K6015 CHIP SMD, 2G/3G/4G Antenna
AHUG.200T 3.5~6.5GHz P1410 3.5~6.5GHz OnBoard UWB ANT
H200 Magnet Metal AH3G.402 2G/3G/4G 2G/3G/4G,NB-IoT,CAT.1&4, H200 MetalSpring Antenna
NB-IoT /CAT.1
H175 Magnet Rubber AH3G.401 2G/3G/4G H175 Rubber Magnetic SMA-J ,3G/4G/5G
NB-IoT /CAT.1
GPS BOX AHGG.101 GPS + BD Q48x38 Box GPS SMA-J , L2000 ,GPS/BD Antenna
GPS Internal AHGG.202 GPS + BD Q25x25 Internal GPS , L120, GPS/BD Antenna
Fiberglass AH1G.404 433-915MHz H300 FiberGlass N Conn, 433M-915MHz  ANT
RF Cable ASSY 1# AHCG.101 0~6 GHz L120 1.13cable SMA-IPX, DIP
RF Cable ASSY 2# AHCG.102 0~6 GHz L120 1.13cable SMA/B-IPX ,DIP
RF Connector SMA 1# AHCG.201 0~6 GHz SMA-K Q4,DIP
RF Connector SMA 2# AHCG.202 0~6 GHz SMA-K Bended Q4 ,DIP
RF Connector SMA 3# AHCG.203 0~6 GHz SMA-K T1.6,DIP
RF Connector IPX G1 AHCG.204 0~6 GHz IPX Mounting G1, SMD RF connector
