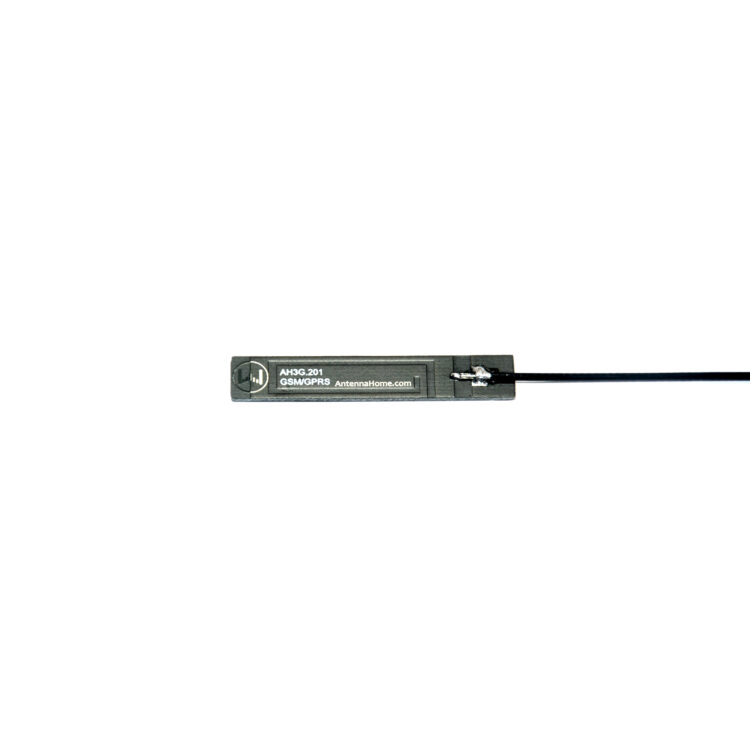

AntennaHome PCB4007 L120 1.13 Cable IPX, GSM/GPRS

$9.99

  • PN: AH3G.201
  • Frequency: 824~2170 MHz
  • Weight: 1.2g/pc
  • Package: PP bag+Carton box
  • Application: GSM/GPRS/WCDMA/NB-IoT/Cat.1/LoRa 868/915M, includes frequencies of 824M~2170MHz wireless
    products

AntennaHome PCB4007 L120 1.13 Cable IPX, GSM/GPRS

AntennaHome PCB4007 L120 1.13 cable IPX, GSM/GPRS for GSM/GPRS/WCDMA/NB-IoT/Cat.1/LoRa 868/915M, includes frequencies of 824M~2170MHz wireless products.

Specifications

Frequency 824~2170 MHz
Gain 2.0  dBi
Impedance 50 Ohm
VSWR ≤2.0
Polarization Vertical / Omni
Power Max 50 W
Conn&Cable IPEX&1.13Cable
Material FR4
Color Black
Mounting IPEX connector
Working Temperature -40 to +80
Size W7.0xL120xT1.0 mm
Weight 1.2g/pc

Type

P N

Frequency

Product Description

Spring

AH1G.301

433MHz

Spring DIP,433M antenna

AH1G.302

868/915M,
900/1800MHz

Spring DIP,868M/915M, GSM900/1800M antenna

AH2G.304

2.4GHz

Spring DIP,2.4G antenna

H50 Rubber

AH1G.101

433MHz

H50 Rubber SMA-J ,433M antenna

AH1G.102

868/915MHz,
2G/3G

H50 Rubber SMA-J ,868M/915M,GSM900/1800M antenna

AH2G.104

2.4GHz

H50 Rubber SMA-J ,2.4G

H50 Rubber
-JW

AH1G.103

433MHz

H50 Rubber SMA-J W,433M antenna

AH1G.104

868/915MHz,
2G/3G

H50 Rubber SMA-JW ,868M/915M,GSM900/1800M antenna

AH2G.105

2.4GHz

H50 Rubber SMA-JW ,2.4G

H108 Rubber

AH2G.101

2.4GHz

H108 Rubber SMA-J ,2.4G

AH2G.102

5.8GHz

H108 Rubber SMA-J ,5.8G

AH3G.101

824~2170MHz,
2G/3G

H108 Rubber SMA-J ,2G/3G

H195 Rubber

AH2G.103

2.4GHz, 5dBi

H195 Rubber high gain SMA-J,2.4G

H200 BIAN

AH3G.102

2G/3G/4G
NB-IoT /CAT.1

HB180 Rubber SMA-J ,3G/4G/5G

PCB + Cable
Internal Ant

AH1G.300T

433M-915MHz

433M-915MHz PCB ANT

AH2G.205T

2.4/5.8GHz

2.4/5.8GHz PCB ANT

AH3G.201T

824~2170MHz,
2G/3G

824-2710MHz PCB ANT

AHNG.200T

13.56MHz

P3020 13.56MHz NFC/RFID  ANT

FPCB + Cable
Internal Ant

AH2G.205

2.4GHz

FPC   L120 1.13cable IPX,2.4G

AH3G.204

3G/4G/5G

F6330 1.13 Cable IPX,3G/4G/5G ANT

CHIP SMD
OnBoard ANT

AH2G.302

2.4GHz

K0801 CHIP SMD, 2.4G Antenna

AH3G.303

2G/3G/4G

K6015 CHIP SMD, 2G/3G/4G Antenna

AHUG.200T

3.5~6.5GHz

P1410 3.5~6.5GHz OnBoard UWB ANT

H200 Magnet Metal

AH3G.402

2G/3G/4G
NB-IoT /CAT.1

2G/3G/4G,NB-IoT,CAT.1&4, H200 MetalSpring Antenna

H175 Magnet Rubber

AH3G.401

2G/3G/4G
NB-IoT /CAT.1

H175 Rubber Magnetic SMA-J ,3G/4G/5G

GPS BOX

AHGG.101

GPS + BD

Q48x38 Box GPS SMA-J , L2000 ,GPS/BD Antenna

GPS Internal

AHGG.202

GPS + BD

Q25x25 Internal GPS , L120, GPS/BD Antenna

Fiberglass

AH1G.404

433-915MHz

H300 FiberGlass N Conn, 433M-915MHz  ANT

RF Cable ASSY 1#

AHCG.101

0~6 GHz

L120 1.13cable SMA-IPX, DIP

RF Cable ASSY 2#

AHCG.102

0~6 GHz

L120 1.13cable SMA/B-IPX ,DIP

RF Connector SMA 1#

AHCG.201

0~6 GHz

SMA-K Q4,DIP

RF Connector SMA 2#

AHCG.202

0~6 GHz

SMA-K Bended Q4 ,DIP

RF Connector SMA 3#

AHCG.203

0~6 GHz

SMA-K T1.6,DIP

RF Connector IPX G1

AHCG.204

0~6 GHz

IPX Mounting  G1, SMD RF connector
