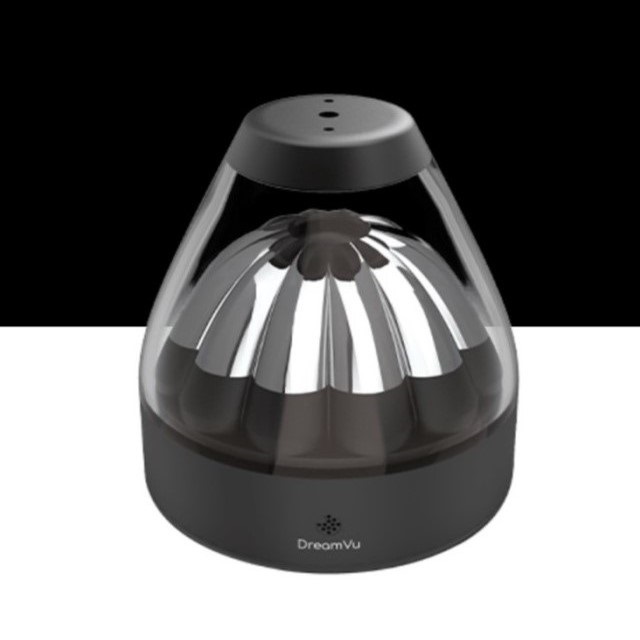

PAL USB 360° 3D Camera

$399.00

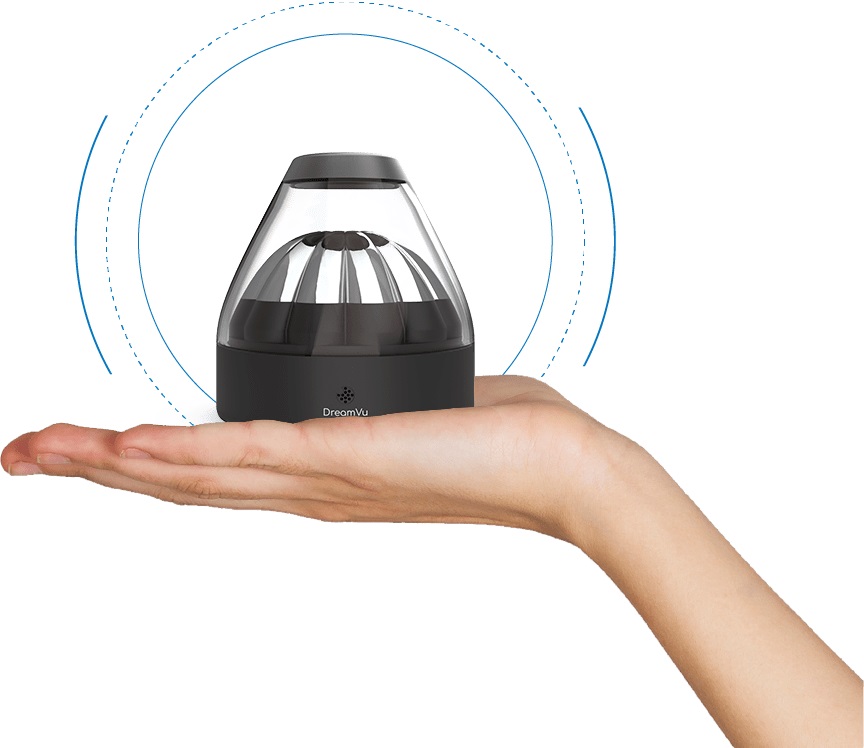

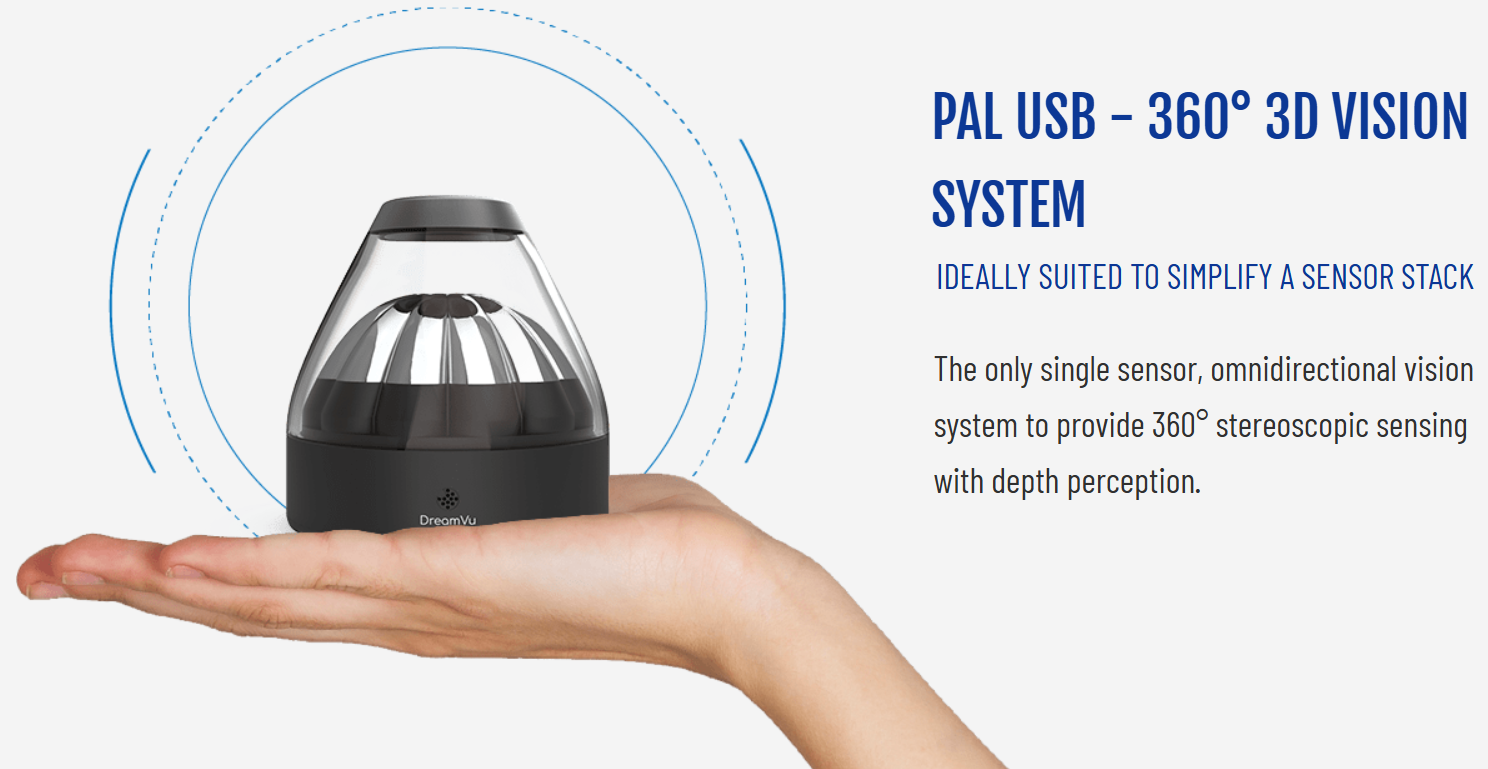

PAL USB is a single-sensor, omnidirectional vision system providing 360° stereoscopic sensing with depth perception. At 2.5W, PAL USB is the lowest-power and lowest-cost option available. It is designed for video processing to be performed on a host computer.

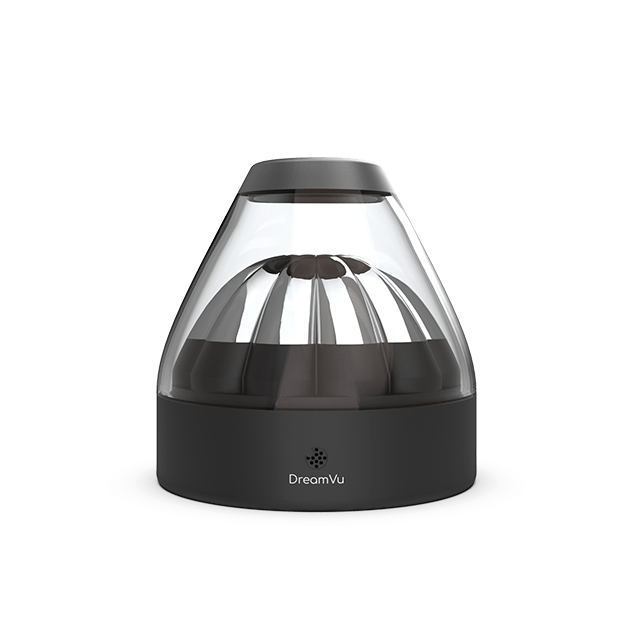

PAL USB 360° 3D Camera

PAL USB enables visual intelligence with an unparalleled field of view that eliminates blind spots and combines full-color video with precise depth mapping and detection in a single video stream. The reliable and efficient system has no moving parts, making it ideal for manufacturers and operators in robotics, factory and warehouse automation, and teleoperations where low latency and ease of use are critical.

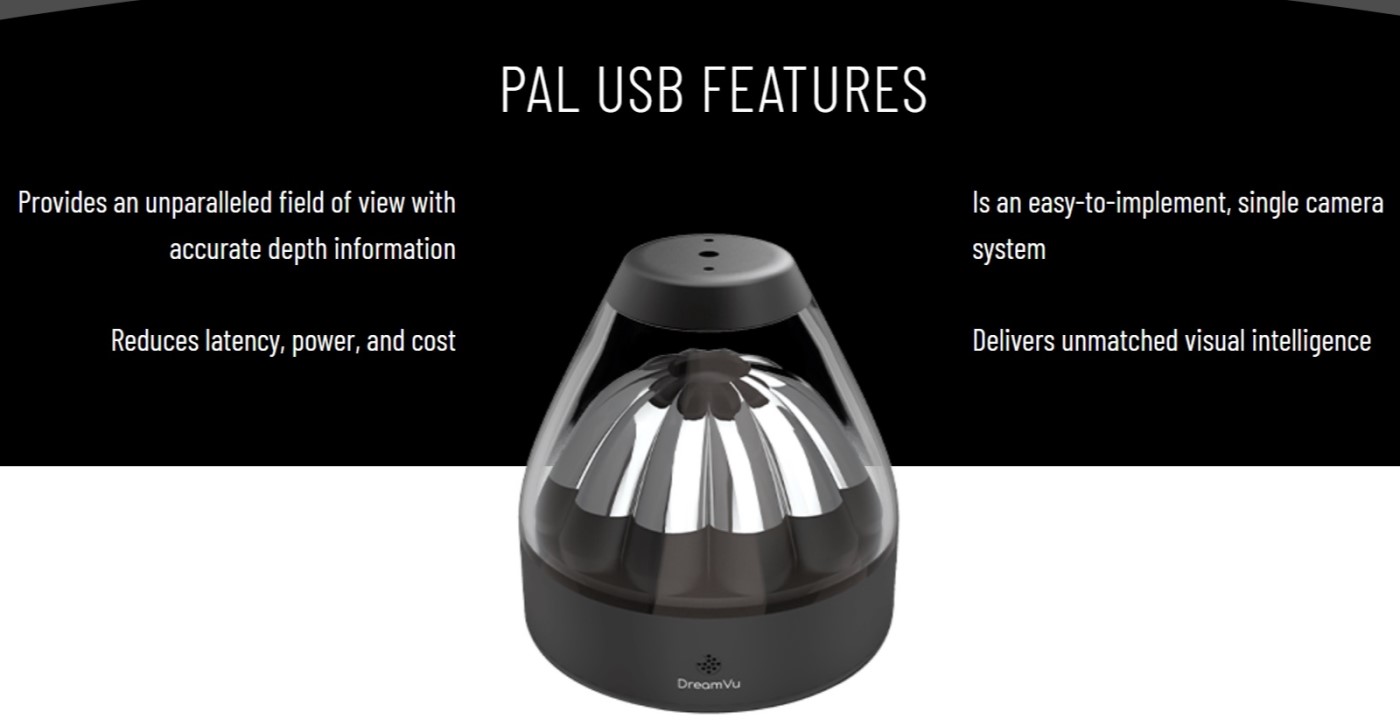

PAL USB Features

  • Provides an unparalleled field of view with accurate depth information
  • Reduces latency, power, and cost
  • It is an easy-to-implement, single-camera system
  • Delivers unmatched visual intelligence

Key Specifications

PAL USB is designed and manufactured to meet the stringent requirements of industrial applications.

Image Performance

Stereo Image Maximum Resolution 5280 x 1819 @10 FPS per image
Maximum Stereo Field-of-View 360° (H) x 110° (V)
Maximum Frame Rate 100 FPS @660 x 227 Stereo Image Resolution

Depth Performance

Minimum Range 0cm
Range Accuracy 10cm RMS @500cm range at 150cm mounting height
Range Resolution 0.3cm @200cm range at 150cm mounting height
Latency As low as 200 ms

Operating Conditions

Operating Voltage 5V +/- 0 .25V
Maximum Power Consumption 3.04W
Operating Temperature -30°C to +55°C
Ambient Lighting 5 Lux to 25,000 Lux

Compatibility and Certifications

Operating System Ubuntu 16.04, 18.04, 20.04, Windows 10, Jetpack 4.4.1
Library Dependencies OpenCV 3.4.4, ROS Melodic
Certifications CE, RoHS, FCC, VCCI & UL
Interface USB 3.0
IP Rating IP67

Primary Use Cases

Autonomous Mobile Robots (AMR)
In AMRs, PAL greatly simplifies the sensor stack to save time and cost. PAL easily performs the sensing functions for Obstacle Detection, Obstacle Avoidance (ODOA), visual Simultaneous Localization and Mapping (vSLAM), and can be used for situational awareness such as obstacle recognition and people detection.

UV Disinfection
Ultra-violet (UV) Disinfection is an effective way to ensure public places are free from germs. But it also introduces a unique need for PAL – to identify the presence of any person within a radius around the UV Disinfection machine. PAL and Vision Intelligence Software provide a complete solution to this challenge.

Collaborative Robots (Cobots)
As a single vision system, PAL provides complete situational awareness so both the cobot and the human can safely and productively work together.

Teleoperation
As a single vision system, PAL provides complete high-definition situational awareness with low latency so an operator can safely and effectively perform the required tasks remotely.

Smart City
PAL is an ideal choice for smart city use cases. From a single camera, PAL can cover an entire room up to 400m2 to provide a detailed occupancy map and a digital twin of the entire environment.

Product Datasheet and Manual

If applicable, the Product Documentation such as Datasheet, Brochure, Reference Materials, CAD Design, STP Files, Manuals, and Tutorials will be available for download upon purchase from the My Account as needed. On the checkout page, please create an account to download product-related files upon purchase. You won’t be able to download otherwise.


Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

DreamVu is the leader in omnidirectional 3D vision systems. With camera-based systems that leverage patented optics and imaging software to reduce system costs and deliver an unparalleled field of view, DreamVu is enabling/pioneering the next generation of visual intelligence. By empowering customers to innovate with low power, low latency single stream video, DreamVu is transforming how machines and humans see the world.
