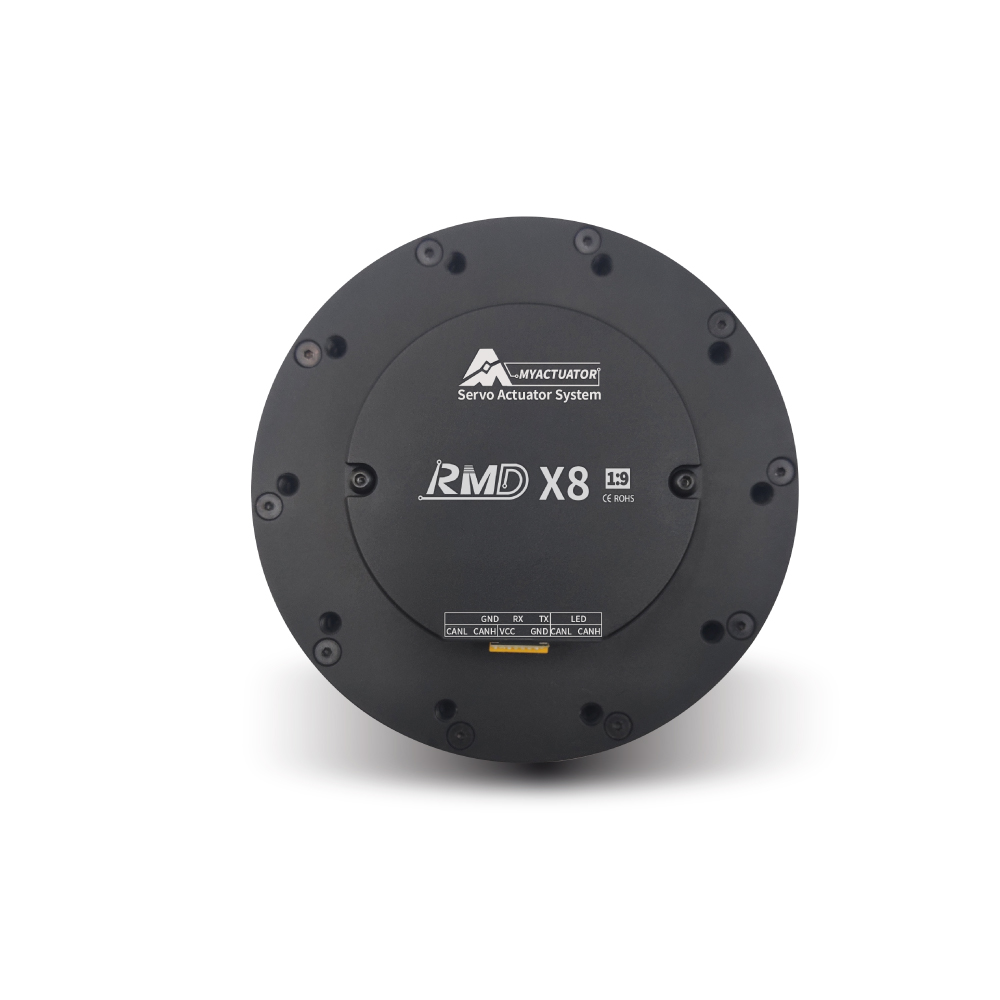

RMD-X8 V2 BLDC Servo Motor High Torque Motor Planetary Reduction Motor 48V CAN BUS

$359.00

  • Increase gear ratio from 6:1 to 9:1 Less Weight and More Efficiency. With IP54 waterproof, the motor can work even in the worst conditions.
  • Provide stable and reliable power for different fields. Torque increased by 20%, and strong torque brings superpower.
  • High precision planetary reducer with 3-5 arc backlash. Transmission efficiency up to 95%.
  • The weight reduces by about 5%. Process optimization, running more smoothly, longer motor life—support OTA Function.
  • Support OEM/ODM service to satisfy your requirements for motor and driver. Follow-up will open the program function personalized customization service.

Out of stock

RMD-X8 V2 BLDC Servo Motor High Torque Motor Planetary Reduction Motor 48V CAN BUS

RMD-X8 V2 48V DC Brushless Servo Motor High Torque DC Motor Planetary Reduction Motor

Transmission efficiency up to 95%. The weight reduces by about 5%. Process optimization, running more smoothly, longer motor life. Support OTA Function. Support OEM/ODM service to satisfy your requirements for motor and driver. Follow-up will open the program function personalized customization service. Torque increased by 20%, and strong torque brings superpower. With IP54 waterproof, the motor can work even in the worst conditions. Provide stable and reliable power for different fields.

  • Increase gear ratio from 6:1 to 9:1 Less Weight and More Efficiency.
  • With IP54 waterproof, the motor can work even in the worst conditions.
  • Provide stable and reliable power for different fields.
  • Torque increased by 20%, and strong torque brings superpower.
  • High precision planetary reducer with 3-5 arc backlash.


Product model: RMD-X8 V2
Turns(T): 18
Nominal voltage(V): 48
No -load Seed(rpm): 250
Nominal Seed(rpm): 165
Nominal current(A): 4.9
Nominal power(W): 240
Nominal torque(N.M): 11
Max stall current(A): 7
Max stall Torque(N.M): 30
Resistance: 0.94
Wire connect: Y
Phase to phase inductance(MH): 0.73
Speed constant(rpm/v): 32
Torque constant(N.M/A): 3.00
Radial load(N): 1200
Axial load(N): 300
Rotor inertia(gcm^2): 805
Number of pole pairs: 20
Motor weight(G): 566
Working temperature(°C): -20~80°C
Max demagnetize temperature(°C): 120°C
Reducer ratio: 9:1
Backlash(Arc min): 5
Drive(V): DRC20
Input voltage(V): 12~50
Current(A): Normal:15A Instant:30A
Normminal power(W): 700
Communication: CAN BUS
Endcoder: 16-bit magnetic encoder
Baudrate(bps): 1M
Communication frequency(HZ): 2K
Control frequency: Torque loop:32KHZ Speed loop:8KHZ Position loop:4KHZ
Control mode: Torque loop(current loop)/speed loop/position loop
S-Curve: YES
ID switch: YES
Connector: XT2.0
Temperature sensor: YES

Additional information

Weight 1.24 lbs
Dimensions 3.9 × 3.9 × 1.7 in
