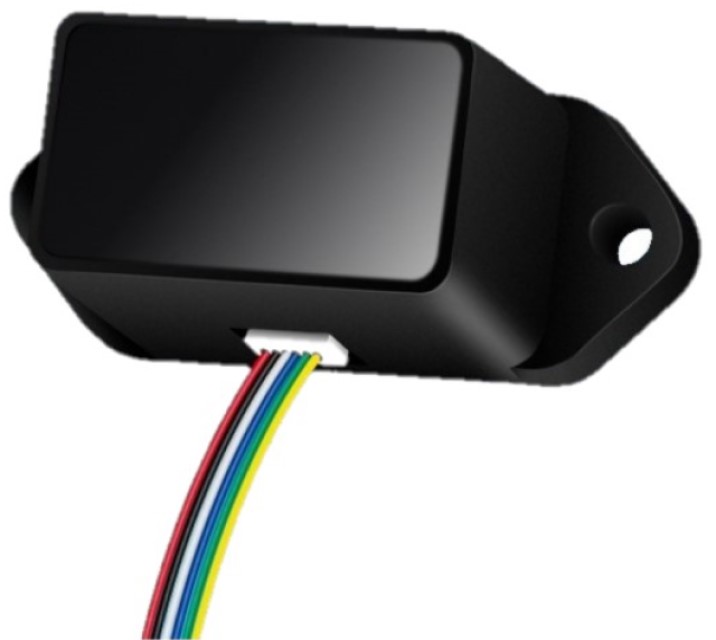

ToF Rangefinder XT-S1 – Small and Long Range Sensor to 30m


XT-S1 is a Tof rangefinder, which is small, weighs only 9 grams, and is easily installed and integrated. With less than 0.5w power consumption, the maximum detecting range reaches 30m. XT can suppress indoor and outdoor ambient light as strong as 100klux and perform stable, accurate, and highly sensitive range detection under low power requirements or battery power supply circumstances.

Made In: China

Supplier: ToFFuture Technology SKU: XT-S1 Categories: , Tags: , , More From:

ToF Rangefinder XT-S1 – Small and Long Range Sensor to 30m

The product is based on the principle Of TOF (Time Of Flight), using a 940nm VCSEL light source with a unique ranging module of optical, electronic, and structural design that can realize the demand of high speed and high precision ranging.

  • Using UART and IIC communication, the information of measuring distance can be obtained. It can also be configured as an IO side to determine whether an object is within a specific range.
  • [High Performance]Operating range is 0.3m-30m(indoor/90% reflectivity). It only keeps 9g at weight. To improve applicability, XT-S1 supports standard communication interfaces — UART and IIC. It is compatible with STM32, Raspberry Pi, and Arduino.
  • [Small size and light weight] With a 43mm×16mm×27mm small size, which is easy to install and integrate into any product, and with only 9g weight, it could meet those applications that strictly need load requirements.

Techcnial Specifciaitons

  • Product Name: XT-S1
  • Detect Range: 0.3~30m
  • Accuracy: ±5cm@30cm~250cm / ±2%cm@250cm~3000cm
  • Wavelength: 940nm
  • Resolution: 1cm
  • Working Temperature: -10 ℃ ~ 60 ℃ (non-condensation)
  • Power Consumption: <100mA@5V
  • Voltage: 4.8~5.2V
  • Ambient Light: 100klux
  • Frequency: Max 50(Hz)
  • Interface: UART/IIC/IO
  • Weight: 9g
  • FOV (receiver): half angle: 1 °
  • FOV (emitter): half angle: 2°
  • Storage Temperature: -20℃~70℃

Product Size:


XT-S1 can be applied for many applications.
