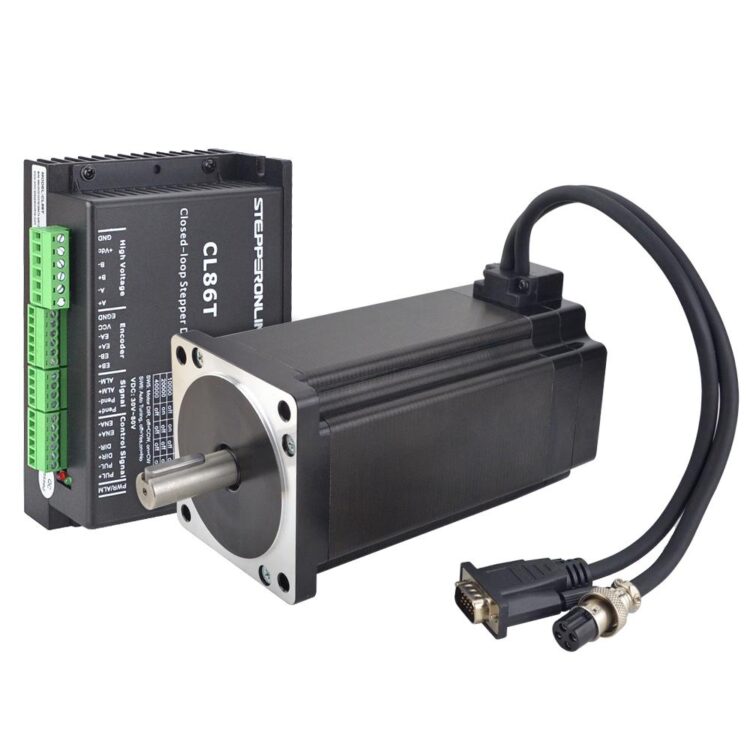

TS Series 12.0 Nm/1699.68oz.in 1 Axis Closed Loop Stepper CNC Kit Nema 34 Motor & Driver w/ 2m Cable


This CNC kit included:
1 x S Series Nema 34 Closed Loop Stepper Motor 19.0Nm/1700oz. in with Encoder 1000CPR
1 x Closed Loop Stepper Driver 0~8.2A 24~80VDC for Nema 34 Stepper Motor
1 x 1.7 m(67″) Long Encoder Extension Cable for Closed Loop Stepper Driver
1 x AWG18 1.7 m(67″) Long Motor Extension Cable with GX16 Aviation Plug

In stock

Made In: United States (US)

Brand: StepperOnline SKU: 1-CL86T-S120 Categories: , , Tags: , , , More From:

TS Series 12.0 Nm/1699.68oz. in 1 Axis Closed Loop Stepper CNC Kit Nema 34 Motor & Driver w/ 2m Cable

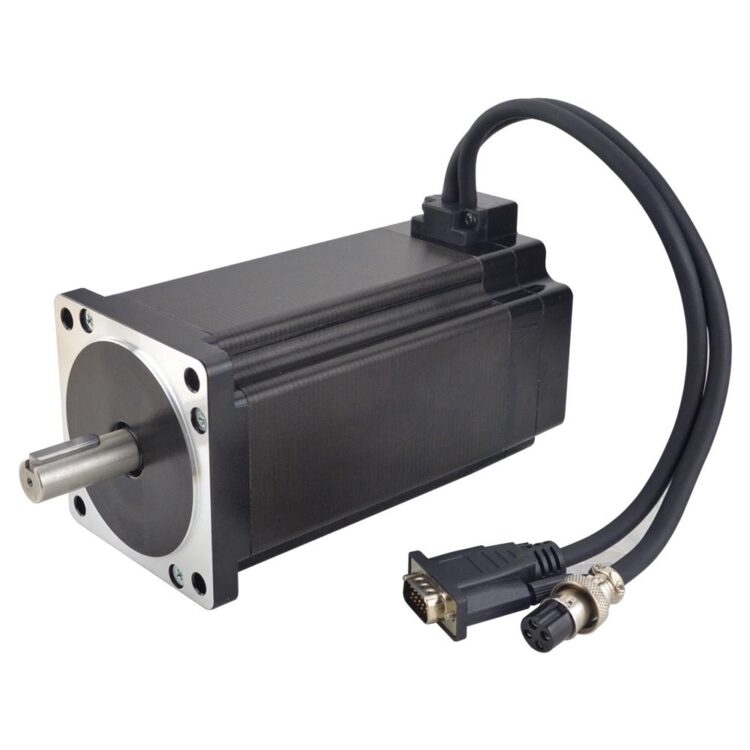

Motor Specification

Part Number: 34HS59-6004D-E1000
Number of phases: 2
Holding Torque: 12.0 Nm(1700 oz.in)
Rated Current/phase: 6.0 A
Phase Resistance: 0.7 ohms
Inductance: 7.9 mH ± 20%(1KHz)
Frame Size: 86 x 86 mm
Body Length: 150.5 mm
Shaft Diameter: Φ14 mm
Shaft Length: 40 mm
keyway Length: 25 mm
Number of Leads: 4
Lead Length: 300 mm
Encoder Specification
Output Circuit Type: Differential type
Encoder Resolution: 1000
Output Signal Channels: 2 channels
Supply Voltage Min: 4V
Supply Voltage Max: 5V
Output Current: 100mA
Output High Voltage: 5V
Output Low Voltage: 4.5V
Output Frequency Max: 60kHZ

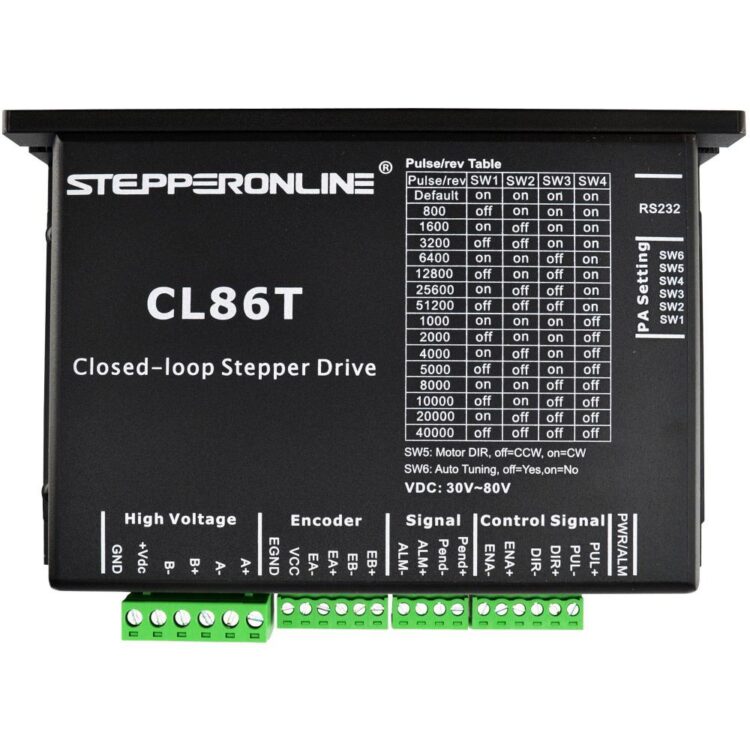

Driver Specification
Output Peak Current: 0~8.2A
Input Voltage: +24~80VDC (Typical 48VDC)
Logic Signal Current: 7~16mA (Typical 10mA)
Pulse Input Frequency: 0~200kHz
Quick response, no delay, and almost no settle time
High torque at starting and low speed, high stiffness at standstill
Offer servo-like performance at a much lower cost
