Sale!

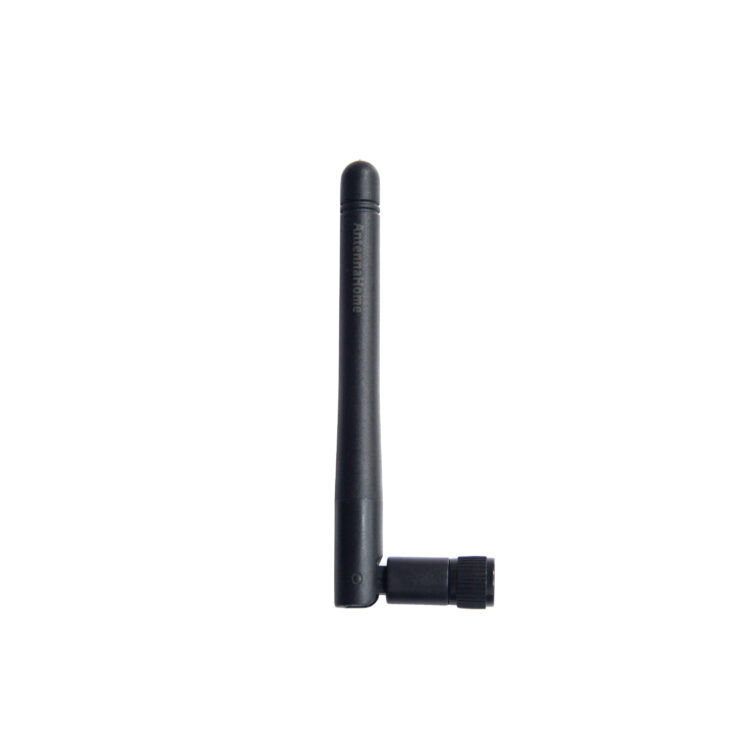

H108 Rubber SMA-J, 5.8G for 802.11 b/g/n, includes 5.8G, Bluetooth, ZigBee and Wi-Fi Products

$9.80

  • PN:AH2G.102
  • Frequency:5150~5850 MHz
  • Weight:8g/pc
  • Package:PP bag+Carton box
  • Application: 802.11 b/g/n, includes frequencies of 2.4G, Bluetooth, ZigBee, and Wi-Fi products

H108 Rubber SMA-J, 5.8G for 802.11 b/g/n, includes Frequencies of 5.8G, Bluetooth, ZigBee, and Wi-Fi Products

Specification

Frequency 5150~5850 MHz
Gain 2.0  dBi
Impedance 50 Ohm
VSWR ≤2.0
Polarization Vertical / Omni
Power Max 50 W
Conn&Cable SMA-J
Material Copper&ABS
Color Black
Mounting SMA connector
Working Temperature -40 to +80
Size ¢10×H108 mm
Weight 8g/pc



[  AntennaHome Product Catalogue  ]

1, Below list update Per Month

2, Each PN have 500~2000pcs in stock Normally

3, Pls contact us if you need free samples

Type

P N

Frequency

Product Description

Datasheet Download

Spring

AH1G.301

433MHz

Spring DIP,433M antenna

AH1G.302

868/915M ,
900/1800MHz

Spring DIP,868M/915M,GSM900/1800M antenna

AH2G.304

2.4GHz

Spring DIP,2.4G antenna

H50 Rubber

AH1G.101

433MHz

H50 Rubber SMA-J ,433M antenna

AH1G.102

868/915MHz,
2G/3G

H50 Rubber SMA-J ,868M/915M,GSM900/1800M antenna

AH2G.104

2.4GHz

H50 Rubber SMA-J ,2.4G

H50 Rubber
-JW

AH1G.103

433MHz

H50 Rubber SMA-J W,433M antenna

AH1G.104

868/915MHz,
2G/3G

H50 Rubber SMA-JW ,868M/915M,GSM900/1800M antenna

AH2G.105

2.4GHz

H50 Rubber SMA-JW ,2.4G

H108 Rubber

AH2G.101

2.4GHz

H108 Rubber SMA-J ,2.4G

AH2G.102

5.8GHz

H108 Rubber SMA-J ,5.8G

AH3G.101

824~2170MHz,
2G/3G

H108 Rubber SMA-J ,2G/3G

H195 Rubber

AH2G.103

2.4GHz, 5dBi

H195 Rubber high gain SMA-J ,2.4G

H200 BIAN

AH3G.102

2G/3G/4G
NB-IoT /CAT.1

HB180 Rubber SMA-J ,3G/4G/5G

PCB + Cable
Internal Ant

AH1G.300T

433M-915MHz

433M-915MHz PCB ANT

AH2G.205T

2.4/5.8GHz

2.4/5.8GHz PCB ANT

AH3G.201T

824~2170MHz,
2G/3G

824-2710MHz PCB ANT

AHNG.200T

13.56MHz

P3020 13.56MHz NFC/RFID  ANT

FPCB + Cable
Internal Ant

AH2G.205

2.4GHz

FPC   L120 1.13cable IPX,2.4G

AH3G.204

3G/4G/5G

F6330 1.13 Cable IPX,3G/4G/5G ANT

CHIP SMD
OnBoard ANT

AH2G.302

2.4GHz

K0801 CHIP SMD, 2.4G Antenna

AH3G.303

2G/3G/4G

K6015 CHIP SMD, 2G/3G/4G Antenna

AHUG.200T

3.5~6.5GHz

P1410 3.5~6.5GHz OnBoard UWB ANT

H200 Magnet Metal

AH3G.402

2G/3G/4G
NB-IoT /CAT.1

2G/3G/4G,NB-IoT,CAT.1&4, H200 MetalSpring Antenna

H175 Magnet Rubber

AH3G.401

2G/3G/4G
NB-IoT /CAT.1

H175 Rubber Magnetic SMA-J ,3G/4G/5G

GPS BOX

AHGG.101

GPS + BD

Q48x38 Box GPS SMA-J , L2000 ,GPS/BD Antenna

GPS Internal

AHGG.202

GPS + BD

Q25x25 Internal GPS , L120, GPS/BD Antenna

FiberGlass

AH1G.404

433-915MHz

H300 FiberGlass N Conn, 433M-915MHz  ANT

RF Cable ASSY 1#

AHCG.101

0~6 GHz

L120 1.13cable SMA-IPX,DIP

RF Cable ASSY 2#

AHCG.102

0~6 GHz

L120 1.13cable SMA/B-IPX ,DIP

RF Connector SMA 1#

AHCG.201

0~6 GHz

SMA-K Q4,DIP

RF Connector SMA 2#

AHCG.202

0~6 GHz

SMA-K Bended Q4 ,DIP

RF Connector SMA 3#

AHCG.203

0~6 GHz

SMA-K T1.6,DIP

RF Connector IPX G1

AHCG.204

0~6 GHz

IPX Mounting G1 ,SMD RF connector
