HeatSign 30W Portable Handheld Laser Engraving Etching Machine
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 2
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 3
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 4
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 5
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 6
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 7
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 8
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 9
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 10
HeatSign 30W Portable Handheld Laser Engraving Etching Machine - Image 11

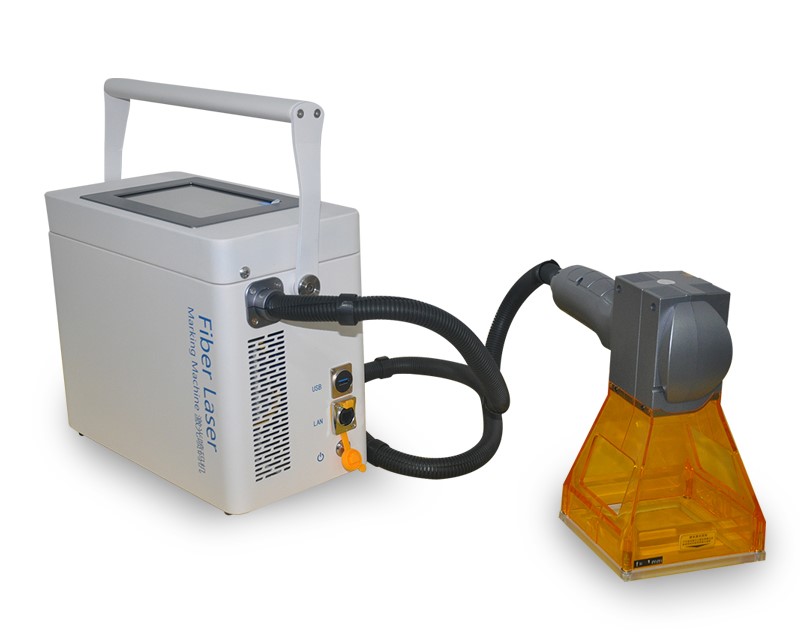

HeatSign 30W Portable Handheld Laser Engraving Etching Machine

$4,450.00

  • Portable design, easy to carry and move
  • Low noise design, applicable to a wide range of scenes
  • Integrated touch screen software, you plug and play.
  • The software is powerful and easy to use
  • A handheld head with an integrated dark acrylic cover can protect the operator’s eyes.
  • There is no need for Maintenance or materials consumption, it saves your continued cost, and it is environmentally friendly.
  • It has a High Marking Precision feature, a Professional Control System, and Software.

PLEASE DO NOT BUY THIS MACHINE UNTIL YOU EMAIL US ANSWERS TO THE QUESTIONS BELOW.

1. What’s your product material and size?
— The machine can be marked on metal and some plastic materials. The machine is easy to carry and is mainly used for large or medium-sized products.

2. What type of surface do you intend to mark?
— The machine can only be marked on a flat surface.

3. How big is your marking area?
— The marking area is 100mm x 100mm.


Ships From: China
Supplier: Heatsign Marking Machine SKU: HS-PLF30S 30W Categories: , , Tags: , , , , More From:

HeatSign 30W Portable Handheld Laser Engraving Etching Machine for Permanent Marking and Engraving

The Fiber Laser engraving machine is an incredibly mobile laser marking and etching solution. This machine quickly and easily marks large, heavy, or immobile objects. In addition, the handheld laser engraver is ideal for marking metal surfaces and produces smooth, clear, and permanent marks on your products. This Fiber Laser marker offers the best electro-optical conversion rate. It is also fitted with the world’s most advanced laser generator, making the portable marking engraving machine superior. It is also robustly built, stable in power output, has a sound air cooling system, and has a great design.

Excellent Performance

  • The advanced JPT laser generator offers high-quality marking
  • High-quality Galvo scanner results in a 20% speed increase
  • Unique silent design, more silent than other machines, low noise

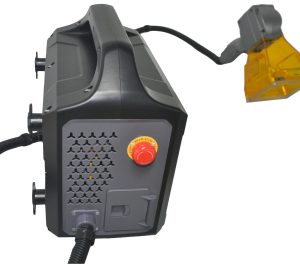

  • The optional battery version offers increased flexibility and convenience
  • 100% portable design, easy to move and operate
  • Increased savings with low power consumption
  • Integrated touch screen software, plug and play
  • No maintenance, no consumables
  • Optional battery version, truly cordless and portable
  • Include powerful software
  • Optional battery version for true cordless portability

Application and Materials

This marking system can be used for logo marks, serial numbers, bar codes, and other beautiful patterns on any metallic material, such as stainless steel, aluminum, titanium, brass, gold, silver, and aluminum, and lots of engineering plastic products, such as mobile covers and chargers, consumer electronics housing, etc.

Laser Machine Advantages

  • High speed up to 7000mm/s
  • High-precision marking result
  • Long work life 50000 ~ 100,000 hours
  • Low noise design

Technical Parameters

  • Model Number: HS-PLF30S
  • Laser Type: Fiber Laser handheld design
  • Laser output power: 30W
  • Marking area: 100mm x 100mm
  • Laser Wavelength: 1064±10nm
  • Max marking depth: ≤0.25mm
  • Marking speed: ≤7000mm/s
  • Supply Voltage: 220V/50Hz/10A(We can supply 110V power convert if you need)

Application Field

Purpose: suitable for marking and engraving hardware tools, knife tools, kitchenware, plastic products, integrated circuits, faucets, sanitary ware, etc.

  • Ink and paint: mobile phone battery labels, panels, keys, small daily necessities, and other accessories.
  • Ceramics, EP materials, electronic component packaging, IC, and other products.
  • Serial numbers and logos on plastic products, electrical enclosures, and other electronic products.
  • Metals and surfaces: stainless steel, copper, aluminum, oxidation, phosphorylation, electroplating, commonly used for the laser marking of hardware, daily necessities, electrical cladding, cell phone shells (e.g., iPhone, iPad), jewelry (e.g., ring), medical tools, etc.

Package: Compact the Carton package, and keep delivery safe.

The advanced JPT laser generator offers high marking quality. High-quality Galvo scanner results in a 20% speed increase—unique silent design, more silent than other machines; low noise. The optional battery version offers increased flexibility and convenience. 100% portable design, easy to move and operate. Increased savings with low power consumption.

Note: This machine should be plugged in when used.

Additional information

Weight 66.14 lbs
Dimensions 24 × 15.35 × 16.14 in
