Sale!

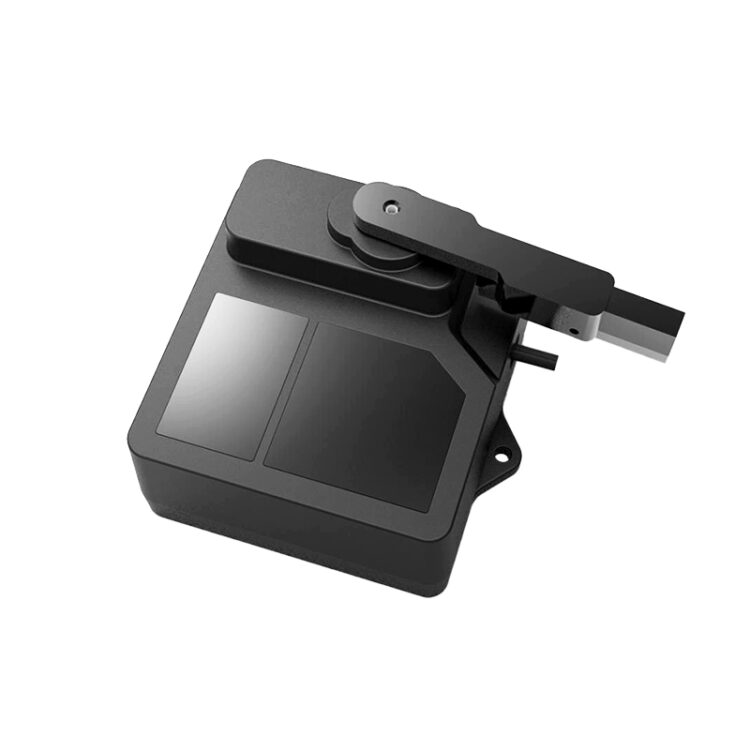

New TF02-Pro-W LiDAR Level Sensor Silo Bins Volume Measurement with Cleaning Wiper 25m

$109.00

  • Detection Range: 0.1-25m.
  • Accuracy: Centimeter-level (1% Relative error).
  • Detection Frequency: 1~1000Hz.
  • Protection level: IP5X.
  • Anti-ambient light: Function under 100k Lux ambient light.
  • Power: 5VDC
  • Interface: UART/I2C selectable.
  • Class1 Eye-safe (IEC60825)

New TF02-Pro-W LiDAR Level Sensor Silo Bins Volume Measurement with Cleaning Wiper 25m

TF02-Pro-W is a single-point ranging LiDAR specially developed for level detection, based on the near-infrared ToF principle, offering non-contact continuous level detection, with a 25m detection range and cm-level detection accuracy. In addition, TF02-Pro-W is supplied with a unique dust-removal wiper, which automatically cleans the lens of the front panel of LiDAR regularly to solve the soiling problems and can maintain the accuracy of ranging detection in heavy dust environments. TF02-Pro-W contains two versions, the standard version (TF02-Pro-W, UART/I²C) and the RS-485 version (TF02-Pro-W-485, RS-485, Modbus protocol).

TF02-Pro-W Material Level Detection LiDAR

Compact size, excellent performance: Based on the ToF (Time of flight) principle, TF02-Pro-W provides stable, accurate, and reliable ranging performance over 25m by optimizing the optical system and built-in algorithms. Using a near-infrared laser light source, the field of view Angle is only 3°. It can be used in outdoor strong light through hardware optimization and equipped with an ambient light algorithm.

Level Detection Application

Benefits for End Users:

  • No need to climb the silo; keep away from danger.
  • Improve the information level of inventory and optimize the replenishment plan.
  • Reduce operating costs and remote inspection.
  • Improve data accuracy.

Features of TF02-Pro-W:

  • Multiple wireless transmission solutions to choose
  • A battery can power TF02-Pro-W
  • The self-cleaning function ensures stable detection performance
  • Multiple communication interface and provide customized service based on customer requirements
  • Free Benewake LiDAR software for easy configuration for fast installation level Detection Application

Benefits for End Users:

  • 1. No need to climb the silo; keep away from danger.
  • 2. Improve the information level of inventory and optimize the replenishment plan.
  • 3. Reduce operating costs and remote inspection.
  • 4. Improve data accuracy.

Benewake LiDAR sensor TF02-Pro-W application video:

Product technical parameters

Benewake TF Series LiDAR Sensor comparison

Parameter TF-Luna TFmini-S TFmini Plus TF02-Pro TF03-100 TF03-180 TF350
Status Mass production Mass production Mass production Mass production Mass production Mass production Mass production
Ranging 0.2-8m (Indoor) 0.1-12m (Indoor) 0.1-12m (Indoor) 0.1-40m (Indoor) 0.1-100m (Indoor) 0.1-180m (Indoor) 350m (Indoor)
0.2-2.5m (Outdoor) 0.1-7m (Outdoor) 0.1-4m (Outdoor) 0.1-13.5m (Outdoor) 0.1-40m (Outdoor) 0.1-70m (Outdoor) 130m (Outdoor)
Accuracy ±6cm ±6cm ±5cm ±5cm ±10cm(in 10m) ±10cm(in 10m) ±10cm(in 10m)
Frequency 1-250Hz 1~1000Hz 1~1000Hz 1-1000Hz 1~1000Hz 1~1000Hz 1~1000Hz
FOV 3.6° 0.5° 0.5° 0.7°
Precision CM CM CM CM CM CM CM
Communication Interface UART/I2C UART/I2C/IO
(RS232/485)
UART/I2C/IO UART/I2C
(RS232/485)
UART/CAN (RS232/485) UART/CAN (RS232/485) UART/CAN (RS232/485)
Light Sensitivity <70k Lux, Sunlight <70k Lux, Sunlight <70k Lux, Sunlight <100k Lux, Sunlight <100k Lux, Sunlight <100k Lux, Sunlight <100k Lux
Weight 5g 5g 11g 50g 77g 77g 173g
Input Voltage 5V 5V 5V 5V~12V 5V 5V 5V
Photobiological Safety PASS PASS PASS PASS PASS PASS PASS
Protection Grade / / IP65 IP65 IP67 IP67 IP67
Dimension 35*21.3*13.5mm 42*16*15mm 35*21*19mm 69*42*26mm 44*43*32mm 44*43*32mm 63*65*38mm

Typical Applications

  • Bins/silo/tank Level sensor
  • Materials level sensing
  • Heavy dust environment Distance sensor
  • Tank volume / Bins volume/ Silo material level Detection
  • Smart Parking
  • Crane safety Operations
  • Vehicles Position Sensing/vehicles counting
  • Vehicles Detection for toll Gate Control
  • People Counting
