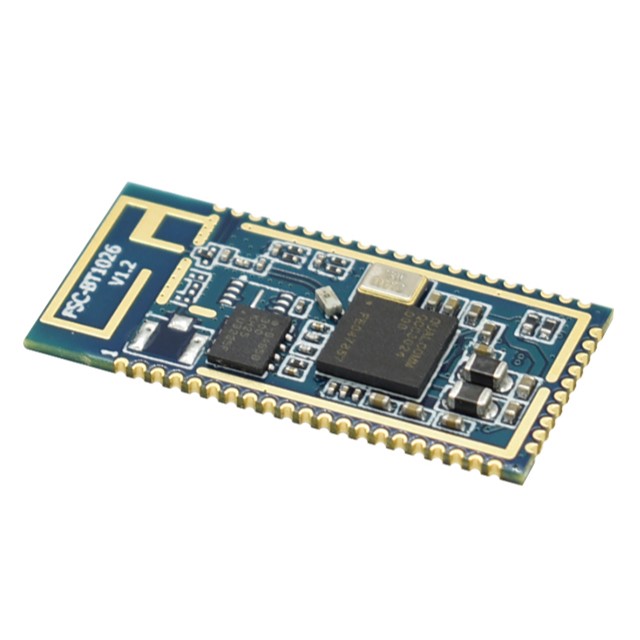

QCC5125 Bluetooth 5.1 Audio Module LDAC apt-X FSC-BT1026E

$10.59

FSC-BT1026E is a Bluetooth 5.1 Dual-Mode Audio Module that adopts the QCC5125 chipset. It supports A2DP, AVRCP, HFP, HSP, SPP, GATT, HOGP, and PBAP profiles as a Bluetooth audio module.

It is designed for high-end audio applications and supports Apt-X HD, apt-X Low Latency, apt-X AD, SBC, and AAC.
Certification: CE, FCC, IC, KC, TELEC, BQB, NCC.

QCC5125 Bluetooth Audio Receiver Module Bluetooth 5.1 Audio Module LDAC apt-X FSC-BT1026E

FSC-BT1026E is a Bluetooth 5.1 Dual-Mode Audio Module that adopts the QCC5125 chipset. It supports A2DP, AVRCP, HFP, HSP, SPP, GATT, HOGP, and PBAP profiles as a Bluetooth audio module. It is designed for high-end audio applications and supports apt-X, apt-X HD, apt-X Low Latency, apex-AD, SBC, and AAC. In addition, it supports communicating with the FeasyBlue app and many other Bluetooth apps.

Basic Parameters

Bluetooth Module Model FSC-BT1026E
Bluetooth version Bluetooth 5.1 dual mode
Chipset QCC5125
Dimension 13mm x 26.9mm x 2.2mm
Transmit power +9 dBm
Profiles A2DP, AVRCP, HFP, HSP, PBAP, SPP, GATT
Certification CE, FCC, IC, KC, TELEC, BQB, NCC, SRRC
Frequency 2.402 – 2.480 GHz
Audio code apt-X, apt-X HD, apt-X Low Latency, apt-X AD, SBC, AAC
Work Temperature -40°C to +85°C

Main Features

  • Qualified Bluetooth v5.1 specifications
  • 120 MHz Qualcomm KalimbaTM audio DSPs
  • 32 MHz Developer Processor for applications
  • Firmware Processor for system
  • Flexible QSPI flash programmable platform
  • Advanced audio algorithms
  • Digital and analog microphone interfaces
  • Apt-X HD, apt-X Low Latency, apt-X AD, SBC, and AAC audio codec support.
