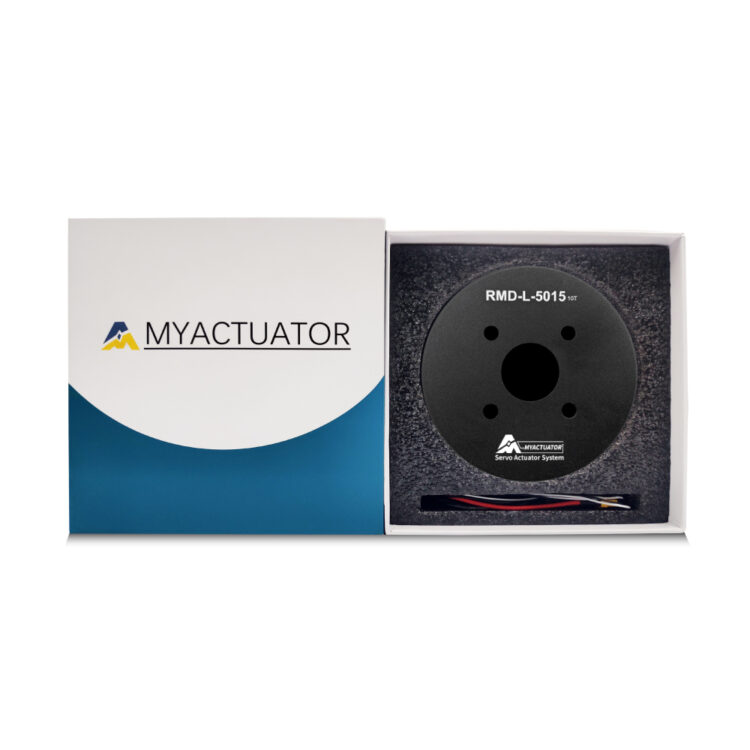

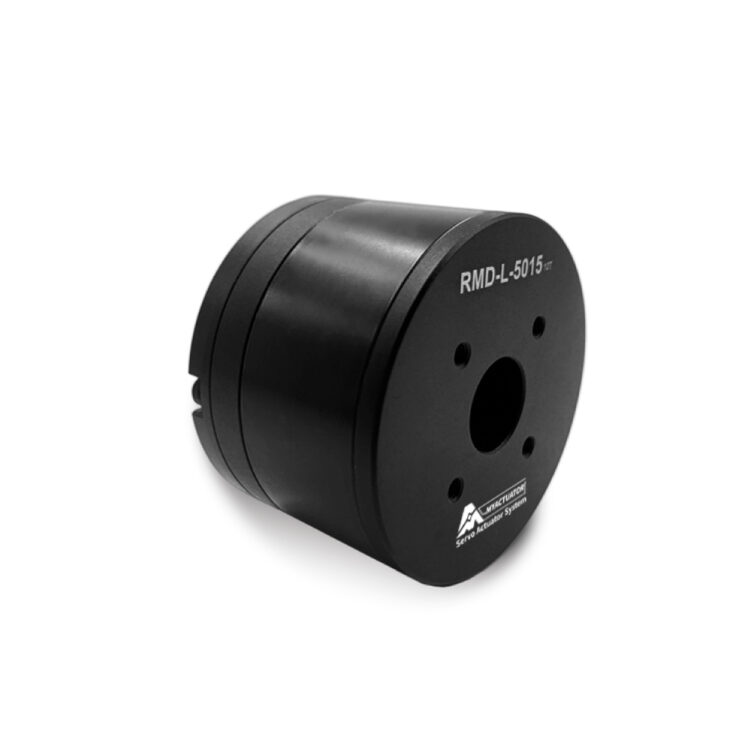

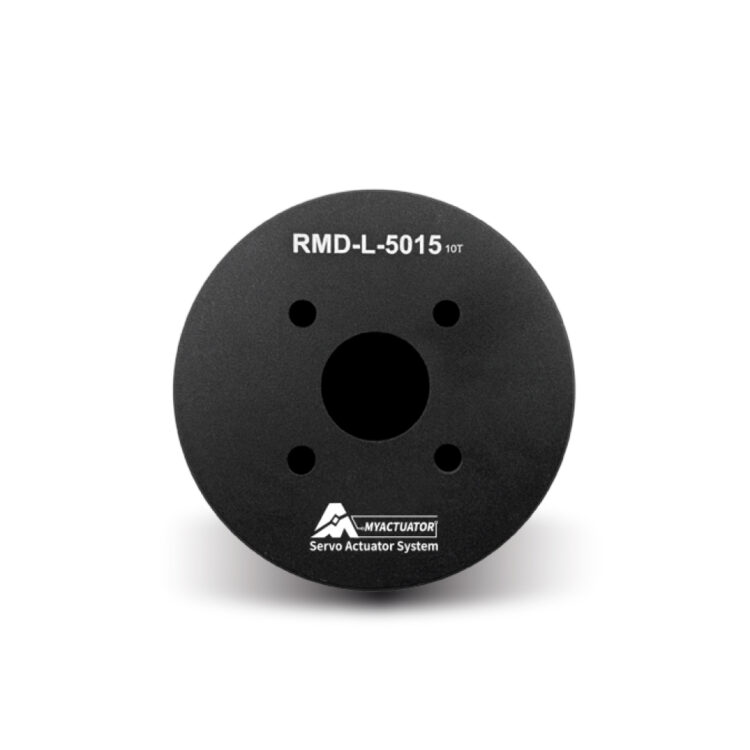

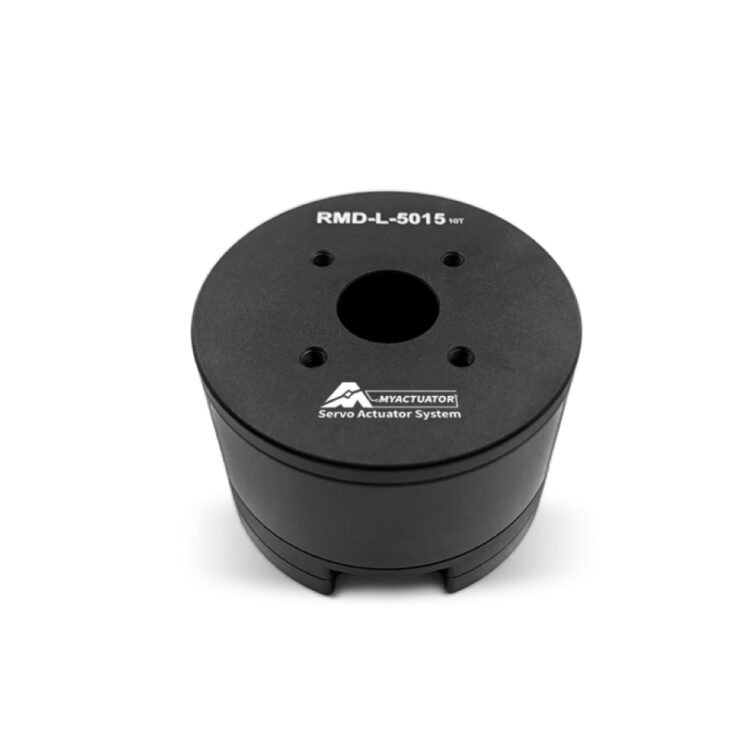

Actuator 14bit Encoder DC Motor for RC Car Robot Boat CAN BUS RMD-L-5015-35T 50mm Diameter

Original price was: $98.00.Current price is: $79.00.

  • 16V 3000rpm high torque low-speed outrunner brushless DD servo motor, DC servo motor for electric scooter
  • High Precision Absolute Value Encoder
  • High-Performance Import BearingUse
  • High-strength Lightweight Aluminum
  • High-Performance RbFeB Permanent Magnet

Out of stock


Made In: China

Supplier: MyActuator SKU: RMD-L-5015-35T Categories: , , , , , , Tags: , , , , , , ,







Technical Specifications

  • Product model: RMD-L-5015-35T
  • Turns(T): 35
  • Nominal voltage(V): 16
  • Max Seed(rpm): 2040
  • Nominal Seed(rpm): 1550
  • Nominal current(A): 4.9
  • Nominal torque(N.M): 0.38
  • Resistance: 0.48
  • Wire connect: Y
  • Phase to phase inductance(MH): 0.19
  • Speed constant(rpm/v): 128
  • Torque constant(N.M/A): 0.08
  • Rotor inertia(gcm^2): 268
  • Number of pole pairs:14
  • Motor weight(G): 174
  • Working temperature(°C): -20~80°C
  • Max demagnetize temperature(°C): 120°C
  • Drive(V): DRC10
  • Input voltage(V): 8~36
  • Current(A): Normal:8A Instant:15A
  • Nominal power(W): 200
  • Communication: CAN BUS
  • Encoder: 14-bit magnetic encoder
  • Baud rate (bps): 1M
  • Communication frequency(HZ): 2K
  • Control frequency: Torque loop:24KHZ Speed loop:8KHZ Position loop:4KHZ
  • Control mode: Torque loop(current loop)/speed loop/position loop
  • S-Curve: YES

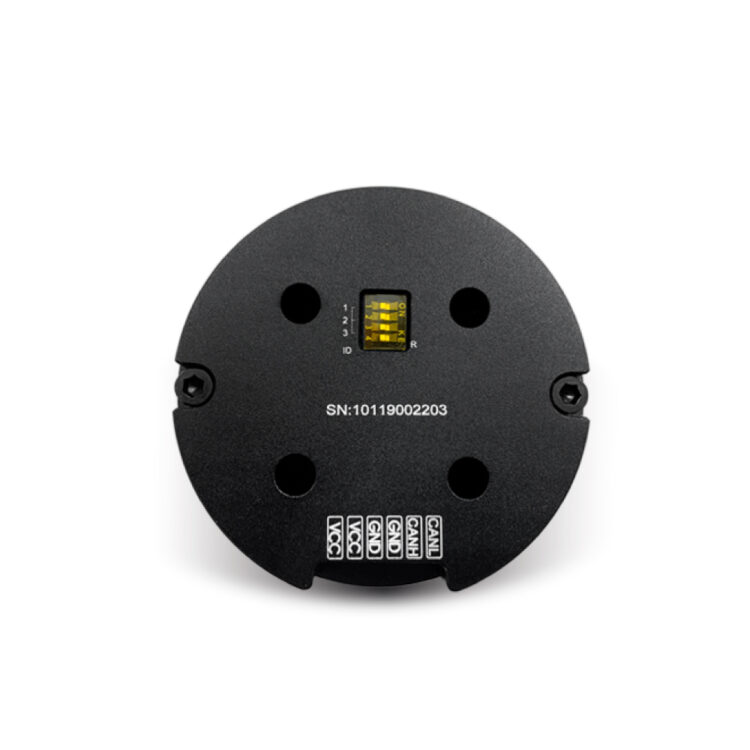

  • Connector: ZH1.5/8PIN
  • Temperature sensor: YES
