Starter Set Super-MP-3D for Precise Indoor Positioning and Navigation System

$629.00

No manual calibration is required. There is no need to know the exact locations of the beacons – the system automatically builds the map of the beacons. The set contains beacons with IMU, which allows ultrasonic + IMU (3D accelerometer + 3D gyro) sensor fusion. That allows a much faster update rate – up to 100Hz and above.

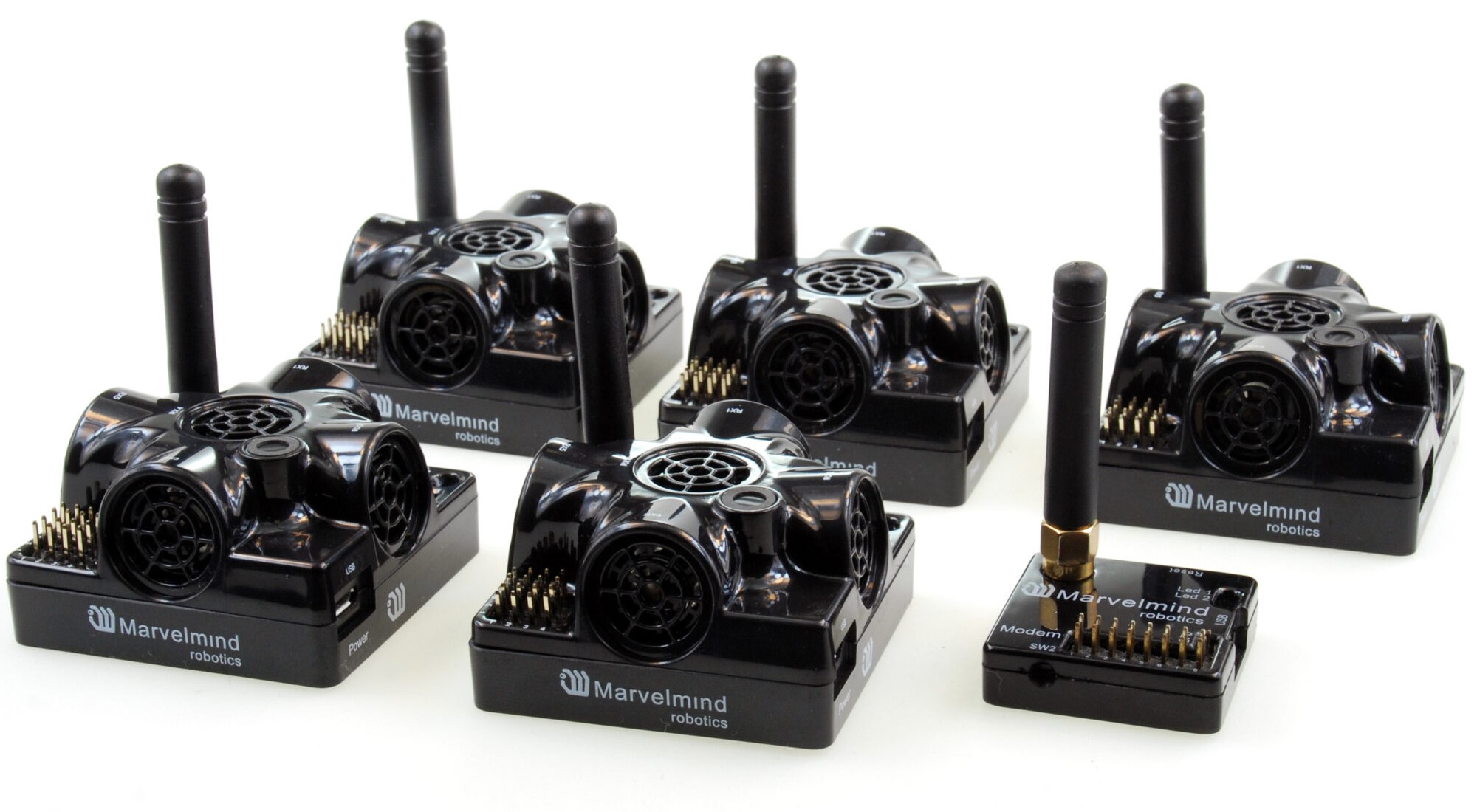

This Starter Set Super-MP-3D consists of 6 items (5 Super-Beacons and 1 Modem).

Starter Set Super-MP-3D for Precise Indoor Positioning and Navigation System

The Starter Set Super-MP-3D is designed for precise indoor positioning and navigation system. It can be used for autonomous navigation of mobile robots, vehicles, and drones; for industrial applications, for example, forklifts or people tracking in a warehouse for safety and productivity. The set is perfect for production automation, warehouse automation, safety, and productivity for people and vehicle tracking, building geo-fencing zone, and tracking inside them.

By default, the Starter Set Super-MP-3D supports NIA and IA:

  • 1D – up to 4 mobile beacons
  • 2D – up to 4 sub-maps, including fully overlapping sub-maps and 2N beacon redundancy for optimal tracking
  • 3D – up to 1 submap with N+1 beacon redundancy

With additional licenses, Starter Set Super-MP-3D can support the following:

  • Multi-Frequency (MF) NIA in 3D with N+1 beacon redundancy
  • Multi-Frequency (MF) NIA in 2D with N+1 beacon redundancy
  • MMSW0004: MF NIA support

Content:

  • 4 x Stationary Super-Beacons (with different ultrasound frequencies)
  • 1 x Mobile Super-Beacon (identical to the stationary Super-Beacons, but typically on another ultrasound frequency)
  • 1 x Modem HW v5.1 supporting up to 250 beacons

All essential SW and Marvelmind Dashboard APIs are already included in the price. Just download the Marvelmind SW pack from the manufacturer’s website. Super-Beacons are a newer version of Beacons HW v4.9 and superior to them in nearly all aspects. Super-Beacons are better than Mini-RXs and Mini-TXs as well:

  • Super-Beacons are dual-use: they can both receive and transmit ultrasound. You can freely use them as stationery and as mobile
  • Super-Beacons have external pins (UART, SPI, reset, etc.)
  • Super-Beacons have an external antenna for a more extended radio range and larger maps
  • Super-Beacons have internal batteries with higher capacity

The critical requirements for the proper system functionality:

  • For 3D (X, Y, Z) tracking – An unobstructed sight by a mobile beacon of three or more stationary beacons simultaneously within 30 meters
  • For 2D (X, Y) tracking – An unobstructed sight by a mobile beacon of two stationary or more stationary beacons simultaneously within 30 meters
  • In ideal (noiseless) conditions and with lower frequencies, the maximum distance can be up to 50 meters – not recommended, but possible.
  • All Super-Beacons have 6D IMU onboard.
  • Line of sight

Technical Details

Distance between beacons

  • Reach up to 50 meters in lab conditions (Transducer4 to microphone looking straight at each other)
  • The recommended distance is 30 meters (Transducer4 to microphone looking straight at each other)

Coverage area

  • Reach up to 1000 m2 with the Starter Set configurations
  • Coverage for larger territories is similar to cellular networks

Weight: Mobile beacon from Starter Set:

  • 59 grams (including battery 1000mAh and housing and antenna 50mm)
  • 27 grams (bare board w/o battery)

Beacon size: 55x55x33 mm (with 50mm antenna: 55x55x65mm)

This Starter Set Super-MP-3D consists of 6 items (5 Super-Beacons and 1 Modem).

Additional information

Weight 2 lbs
Dimensions 8 × 5 × 3 in

Product Datasheet and Manual

If applicable, the Product Documentation such as Datasheet, Brochure, Reference Materials, CAD Design, STP Files, Manuals, and Tutorials will be available for download upon purchase from the My Account as needed. On the checkout page, please create an account to download product-related files upon purchase. You won’t be able to download otherwise.


Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Marvelmind Indoor Navigation System is an off-the-shelf indoor navigation system, designed to provide precise (±2cm) location data to autonomous robots, vehicles (AGV), and copters. It can also be used to track moving objects via mobile beacons attached to them. Other applications include, for example, forklifts, virtual reality (VR) systems, helmets for construction workers or miners, etc.

The navigation system consists of a network of stationary ultrasonic beacons interconnected via a radio interface in a license-free band, one or more mobile beacons installed on objects to be tracked, and a modem providing a gateway to the system from PC or other computers.

A mobile beacon’s location is calculated based on a propagation delay of ultrasonic pulses (Time-Of-Flight or TOF) between stationary and mobile beacons using a trilateration algorithm.

The system can build the map of stationary beacons automatically. In simple cases, no additional manual data input or any manual distance measurements are required. This map formed once can be frozen and stored in the modem’s memory and the system becomes fully active within 7 to 10 seconds after the modem is powered.
