1 x 200W Bluetooth+DSP Mono Amplifier Board – TSA7550B

$68.50

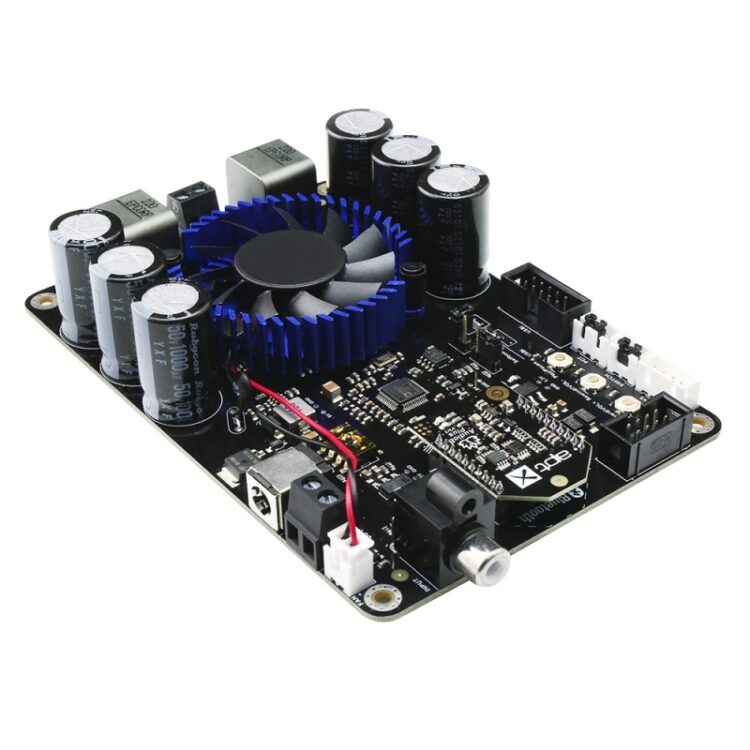

TSA7550B 200W Bluetooth+DSP mono amplifier board with an AudioB plus Bluetooth module that supports Apt-X. TSA7550B is a very flexible DSP/Amplifier combination board. It has perfect class-D architecture(Based on TDA7498E), and the mono channel has a 200W power output. Any DC14V-39V power supply can power this board. It can be used to drive any 3Ω, 4Ω, or 8Ω passive speakers. TSA7550B has a smart cooling system; the fan is not working in normal cases to reduce the noise. Only start when the board overheats.

1 x 200W Bluetooth+DSP Mono Amplifier Board – TSA7550B

TSA7550B 200W Bluetooth+DSP mono amplifier board with an AudioB plus Bluetooth module that supports Apt-X. TSA7550B is a very flexible DSP/Amplifier combination board. It has perfect class-D architecture(Based on TDA7498E), and the mono channel has a 200W power output. Any DC14V-39V power supply can power this board. It can be used to drive any 3Ω,4Ω, or 8Ω passive speakers. TSA7550B has a smart cooling system; the fan is not working in normal cases to reduce the noise. Only start when the board overheats.

It’s a one-channel amplifier board. The only channel is 200W mono output(mixed right and left channel audio). You can pair it with a mobile phone or a computer etc.. Power the amplifier board. Use your phone or PC to search for a new Bluetooth device. The module will appear as “TSA7550B”. You don’t need a PIN, pair it, and then you can play music.

The highlight point is the ADAU1701 DSP chip on board. Users can set audio tones/frequency of the output. The board has the default DSP program loaded. Users can set the amplifier to have a full frequency or low pass output via the switch port. TSA7550B is Apt-X and TWS supported. Therefore, Users can stream audio to 2 paired amplifier boards simultaneously wirelessly.

External Buttons port:

Three buttons on the board can control the audio volume and plays/pause etc… You can connect external buttons easily by using this button’s control port.

Pins define:(Check the board backside silkscreen):

  • P/P: Play the pause button
  • VOL+: volume increase and forward button
  • VOL-: volume decrease and rewind button
  • 1.8V

Switch port:

  • Open: Low-frequency output
  • Close: Full frequency output
  • Users can also define this port function by changing the DSP program.

POT port: The user can connect an external 10K potentiometer to control the audio volume.
DSP programming port: Users can load a new DSP program by using the USB JTAG Sigma DSP programmer

TWS settings:

  • S1 – Long press 3s into pairing mode. Long press 6s clear the pairing info.
  • S1+S2 – Long press 1s into TWS slave mode.
  • S1+S3 – Long press 1s into TWS master mode.
  • S2+S3 – Long press 1s disconnect TWS connection.

Features:

  • Size: 14.3cm x 9.2cm x 2.8cm
  • aptX, aptX Low Latency, SBC and AAC
  • Bluetooth 5.0
  • Mono output
  • Working voltage: DC14V-39V
  • Smart cooling system
  • Over/under voltage protection
  • Over current protection
  • Over temperature protection

Applications:

  • Personal computer
  • Background music system
  • Musical instrument amplifiers
  • Home DIY
  • Car Audio
